| Specification | Value |
|---|---|
| Closing Force | EN Size 4 |
| Max Door Width | 1100mm |
| Max Door Weight | 400 Kg |
| Mechanism | Rack and pinion / Double cam |
| Angle of Opening | 180° |
| Non-handed | Yes |
| Power Adjustment | By spring / By template |
| Action Availability | Single / Double |
| Adjustable Sweep Speed | Yes |
| Backcheck | Heavy duty backcheck option |
| Adjustable Delayed Action | Optional |
| Hold Open | 80° – 180° |
| CE Marked | Yes |
| Certifire Approved | Yes |
| Warranty | 2 years |
86.801

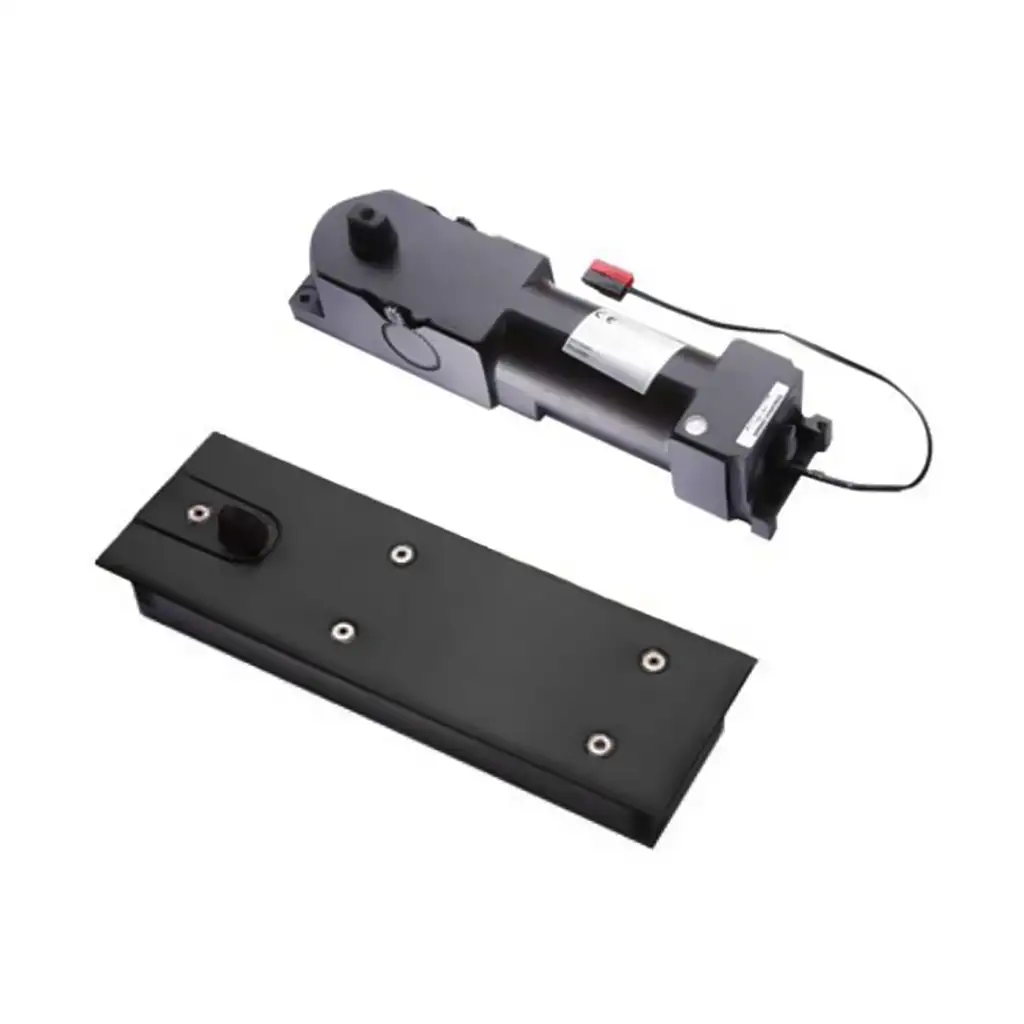

Electro-magnetic floor spring with complete fittings
- Fits discreetly into the floor, giving better resistance to interference and vandalism
- Suitable for use where low opening forces are required (care homes, hospitals, Equality Act consideration)
- Fixed power size 4 — in hold open/swing free mode door opens freely; when fire alarm activates, power is cut to close door
- Available in single and double action; can be supplied complete or mechanism only
- Optional extras: extra-height spindles, 200° cam and gel infill for improved water resistance

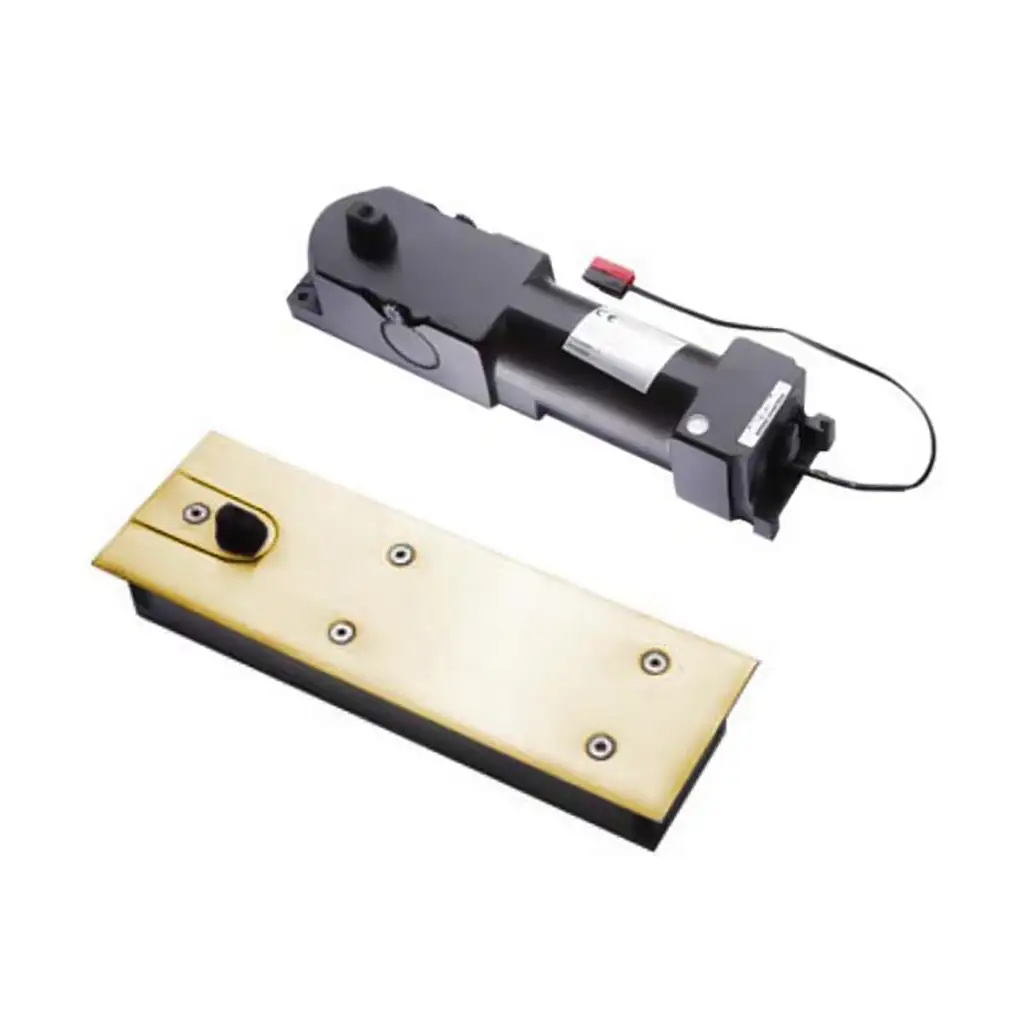

- Cover plate available in a choice of three plated finishes
- Max door width: 1100mm, Max door weight: 400 Kg
- Hold open: 80° – 180°
- CE Marked and Certifire approved
- Warranty: 2 years
