| Specification | Value |
|---|---|
| Closing Force | EN Size 4 |
| Max Door Width | 1100mm |
| Max Door Weight | 60kg |
| Application | Fig 1, Fig 61, Fig 66 |
| Mechanism | Rack & Pinion / Cam & Roller |
| Angle of Opening | 180° |
| Door Handing | Non handed |
| Power Adjustment | By spring / By template |
| Slide Covers | E (Radius), B (Square), S |
| Extended Loop | 650mm |
| Certification | CE Marked, Certifire Approved |
| Warranty | 1 year |

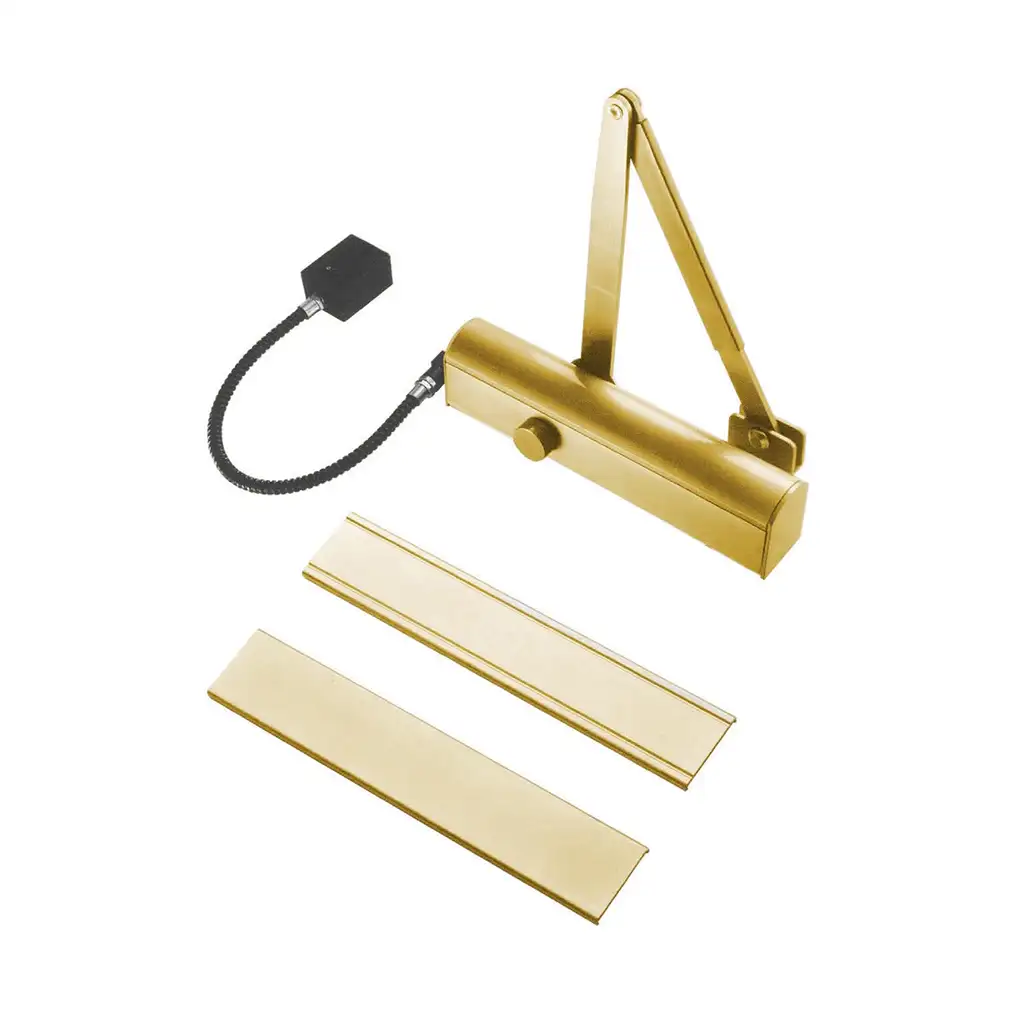

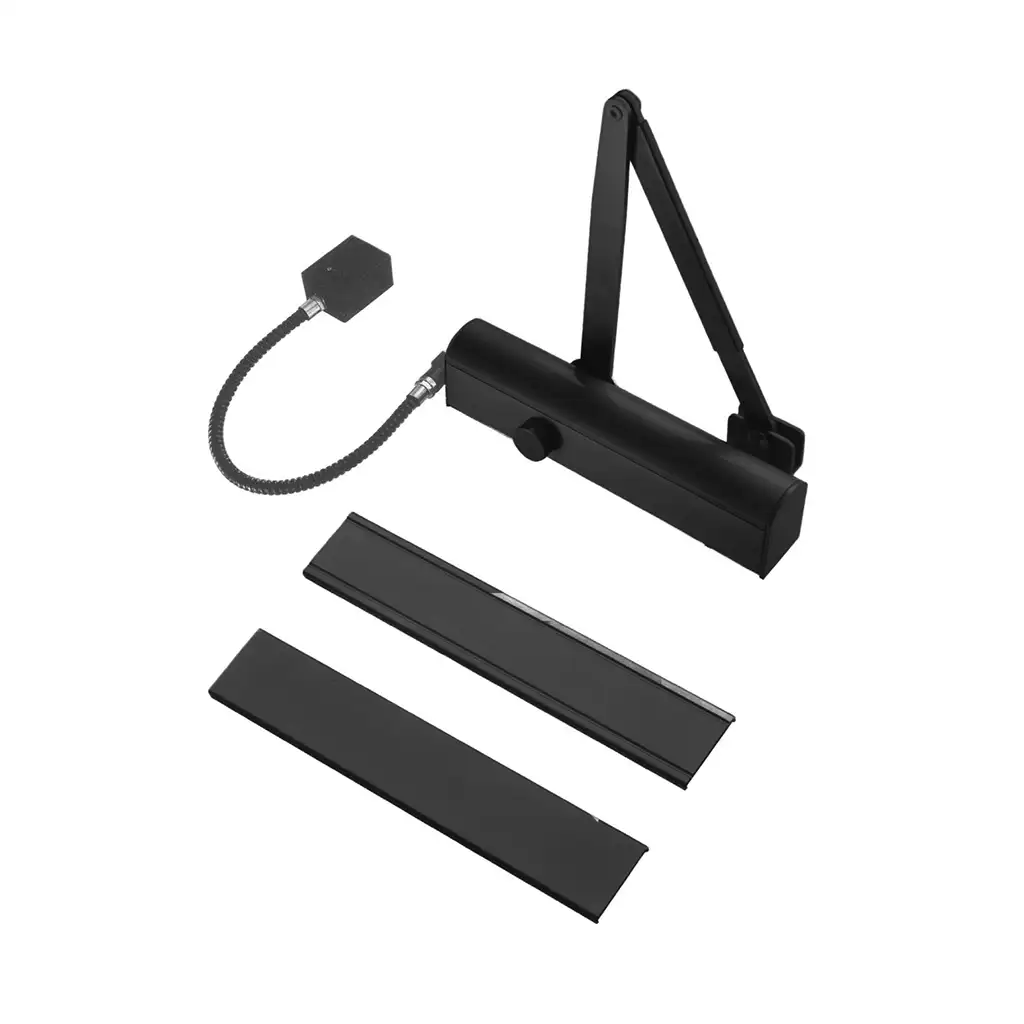

86.600 EM
Electro-magnetic door closer with magnetic adjustable arm
- Available with a choice of 3 different slide covers
- Suitable for care homes, hospitals or where the Equality Act is a consideration
- Hold open/free swing: power size 4 — when fitted, door opens freely; when fire alarm activates, power is cut to close door
- Choice of 3 different slide covers, each with matching adjustable arm and unique cam and roller action
- Dual plug-in power loop for easy fitting
- Closing force: EN Size 4
- Door size max: Width 1100mm, Weight 60kg
- Application: Fig 1, Fig 61, Fig 66
- Mechanism: Rack & Pinion / Cam & Roller
- Angle of opening: 180°
- Non-handed
- Adjustable sweep speed, latching speed, backcheck, delayed action
- CE Marked, Certifire approved
- Slide covers: E (Radius), B (Square), S
- Warranty: 1 year
