| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 2 to 4 (by Position) |
| Door Width / Weight | <850mm/<40kg, <960mm/<60kg, <1100mm/<80kg, <1300mm/<120kg |
| Body Length | 207 mm |
| Body Height | 55 mm |
| Body Projection | 40 mm |
| Angle of Opening | 180° |
| Application | Regular (1), Parallel arm (66), Transom (61) |
| Certification | UL R37999 |
| Warranty | 5 years |

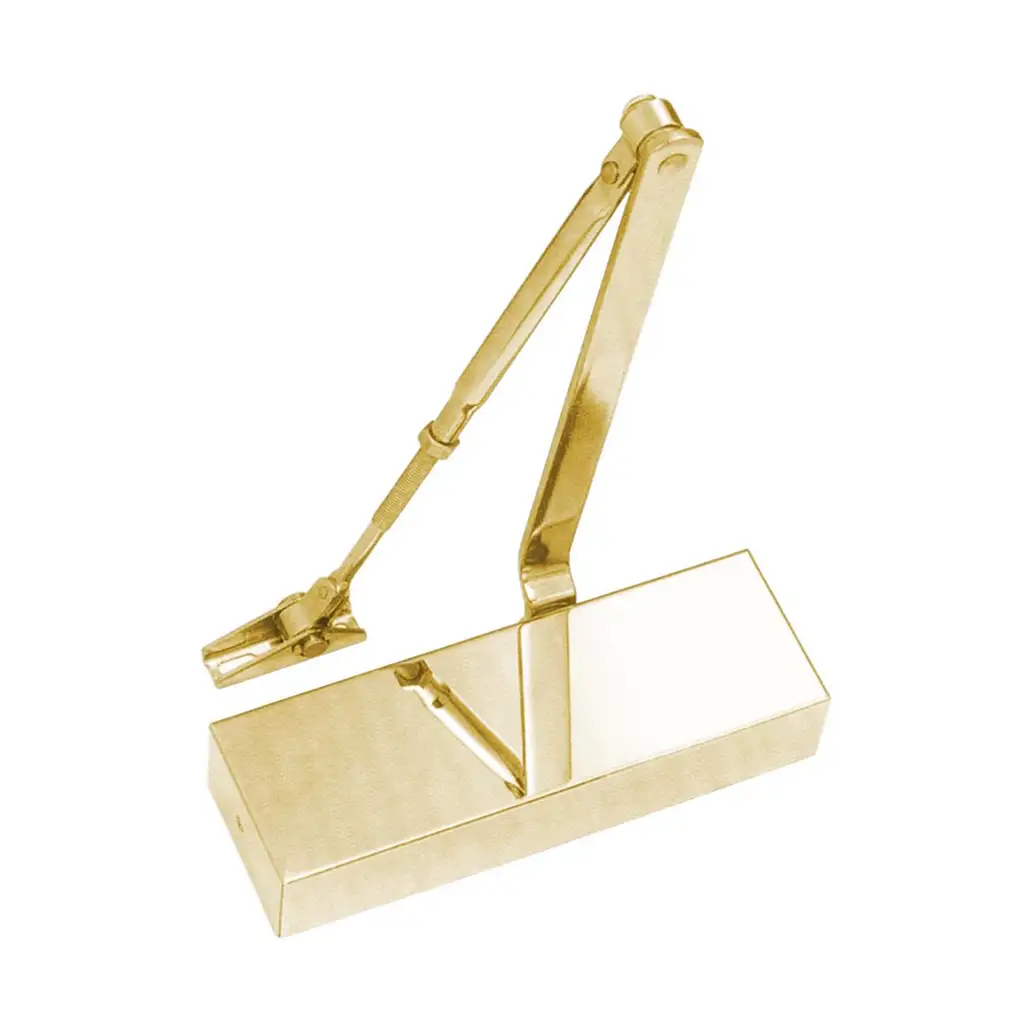

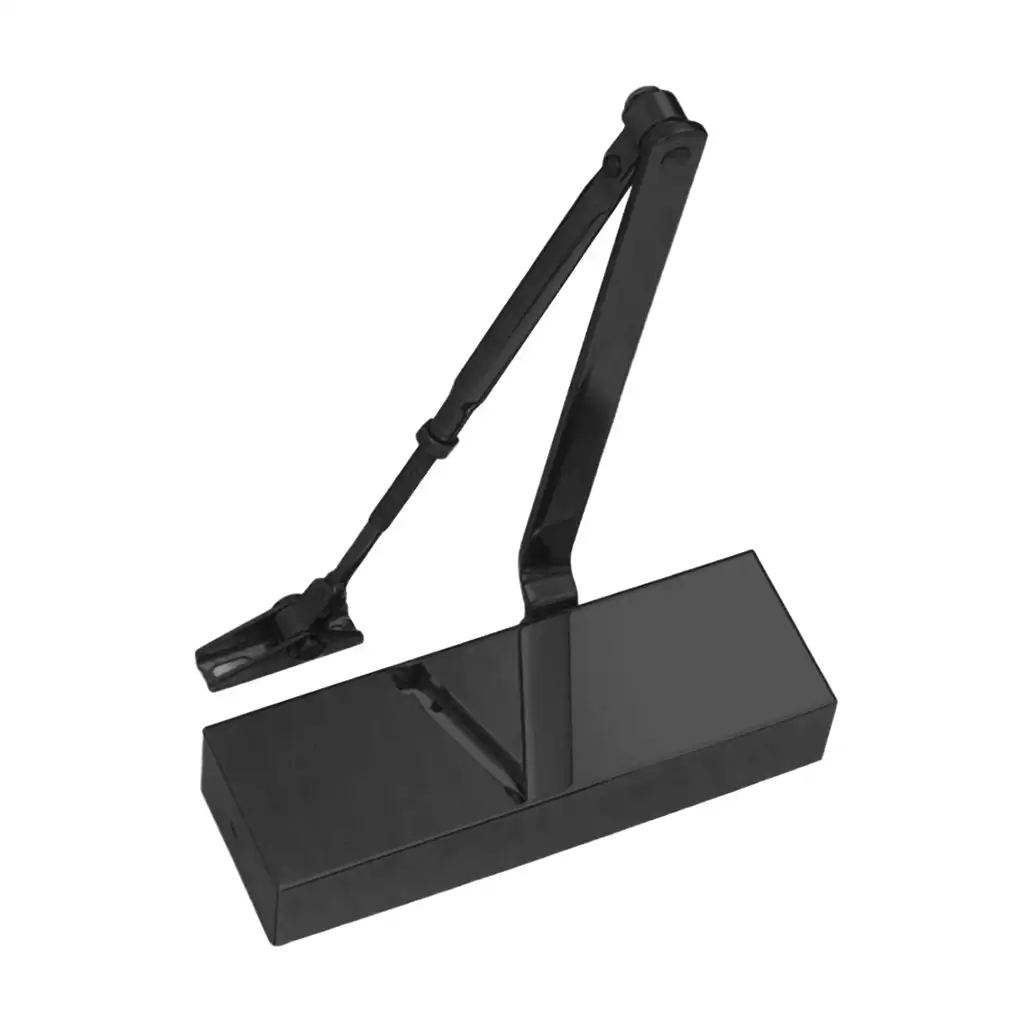

86.404
Overhead door closer
- Adjustable power 2-4 (by Position)
- Standard doors: <850mm <40kg / <960mm <60kg / <1100mm <80kg / <1300mm <120kg
- Body dimensions: Length 207 mm, Height 55 mm, Projection 40 mm
- Arm: Standard; Parallel, Track (standard), Track (hold-open) — optional
- Rack and pinion
- Power shoe arm bracket
- Angle of opening: 180°
- Power adjustable by position
- Sweep speed and latching speed adjustable
- Hold-open: Built in / Hold open arm — optional
- Back-check: Self-regulating / Adjustable at Valve — optional
- Non-handed
- UL Listed R37999
- Warranty: 5 years
