| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 2-5 |
| Durability | 100,000 cycles |
| Material | Aluminium alloy |
| Adjustable Latching Speed | Yes |
| Adjustable Closing Speed | Yes |
| Installation Type | Concealed with sliding track |
| Type | Embedded |
| Max Opening Angle | 150° |
| Mechanism | Rack & Pinion |
| Material of Guide Rail | 6061 Steel |
| Material of Spring | 60Si2Mn |
| Backcheck | No |
| Hold Open | No |
| Delayed Action | No |
| Bearing | Full complement bearing for long durability |
| Application | Suitable for interior wood, glass door and frames |
| Max Door Width | 950 mm |
| Max Door Weight | 65 Kg |
| Warranty | 5 years |

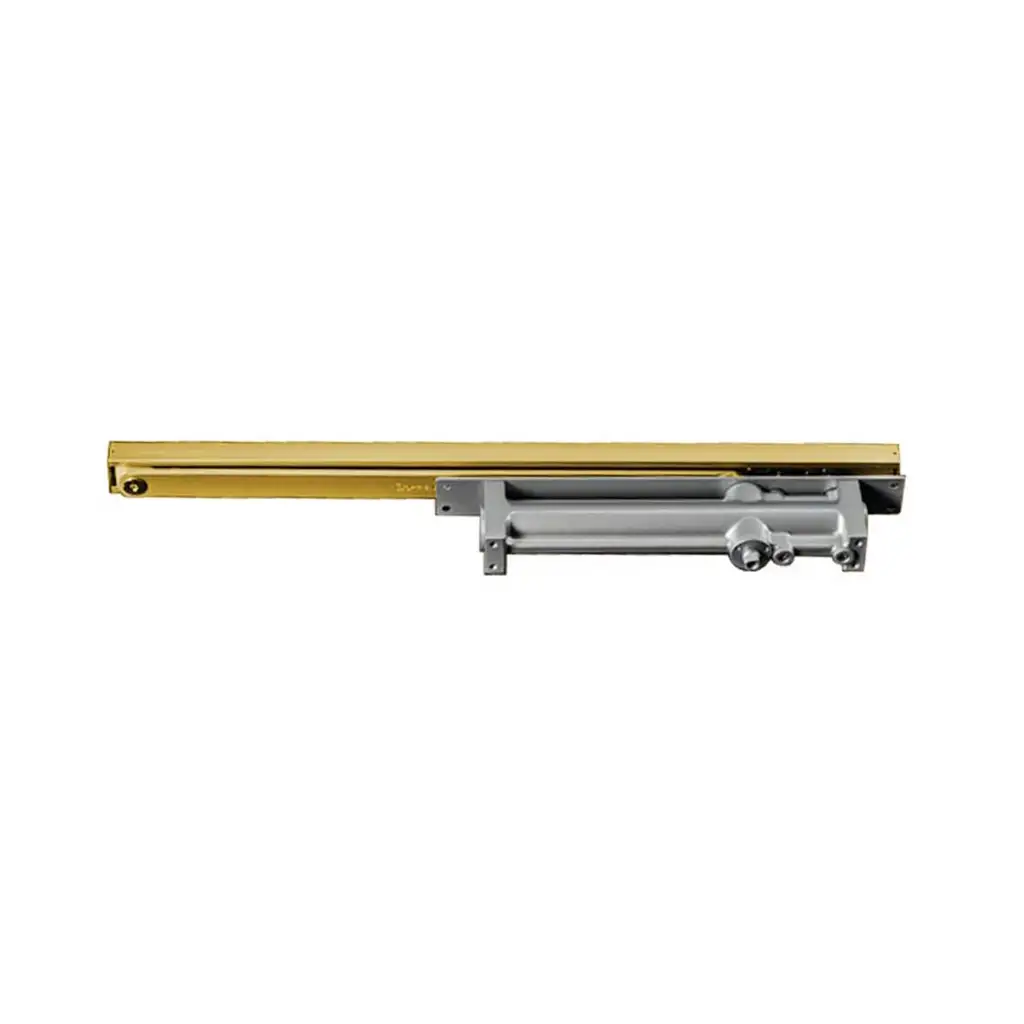

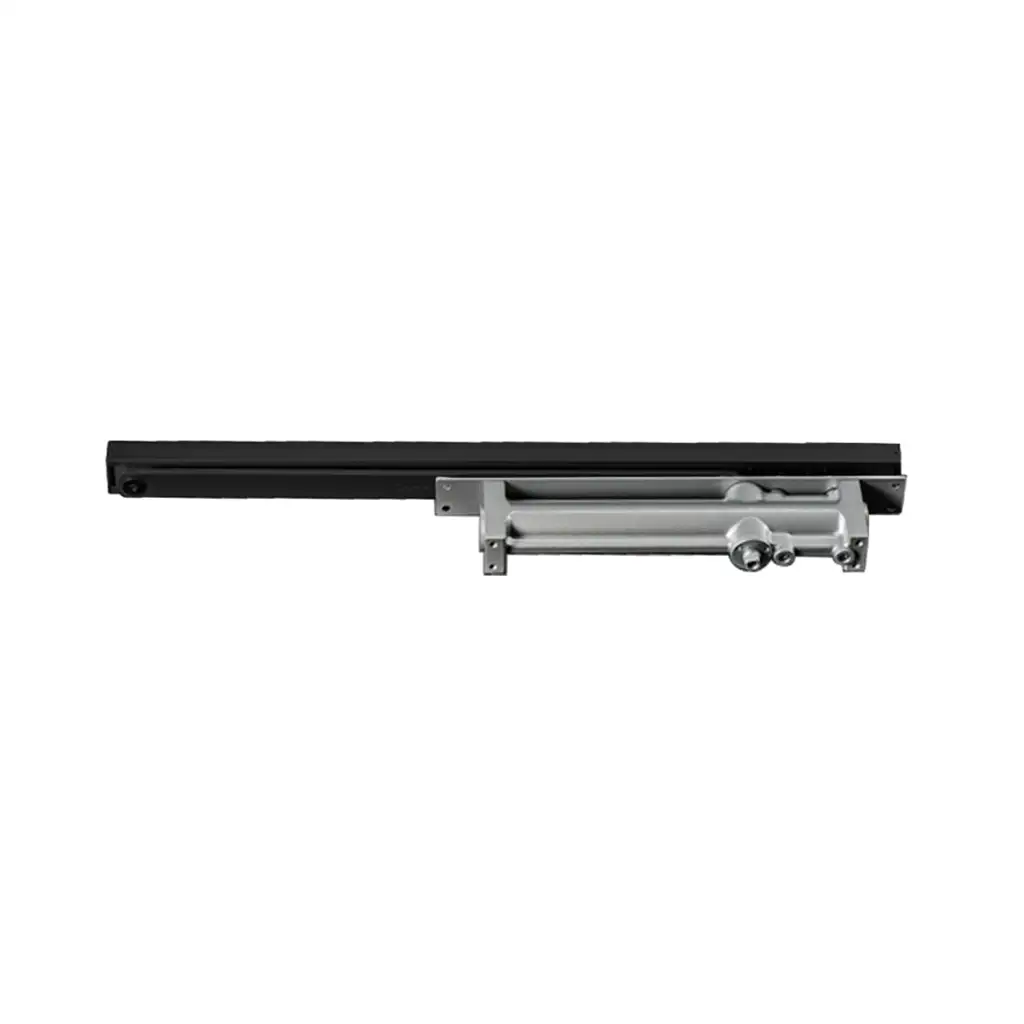

86.216S
Overhead concealed door closer
- Adjustable spring power 2-5
- Light duty concealed overhead closer
- Slim body with 31mm thickness
- Power shoe arm bracket — reversed to increase final closing power by approx. 15%
- Back check — cushioning effect when door is forcibly thrown open
- Max door width: 950 mm
- Max door weight: 65 kg
- Durability: 100,000 cycles
- Material: Aluminium alloy
- Mechanism: Rack & Pinion
- UL Listed
- Warranty: 5 years
