| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 2 to 5 |
| Standard Doors | <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg, <1250mm/<100kg |
| Body Length | 212 mm |
| Body Width | 60 mm |
| Body Thick | 40 mm |
| Arm | Track (standard), Track (hold-open) |
| Double Action | Optional |
| Angle of Opening | 120° |
| Power Adjustable by Spring | Yes |
| Sweep Speed Adjustable | Yes |
| Latching Speed Adjustable | Yes |
| Non-handed | Yes |
| Application | Track arm (standard), Transom (61) optional |
| Standards | EN 1154 3|8|2|1|1|3, Warrington APT Laboratories |
| Warranty | 10 years |
86.316

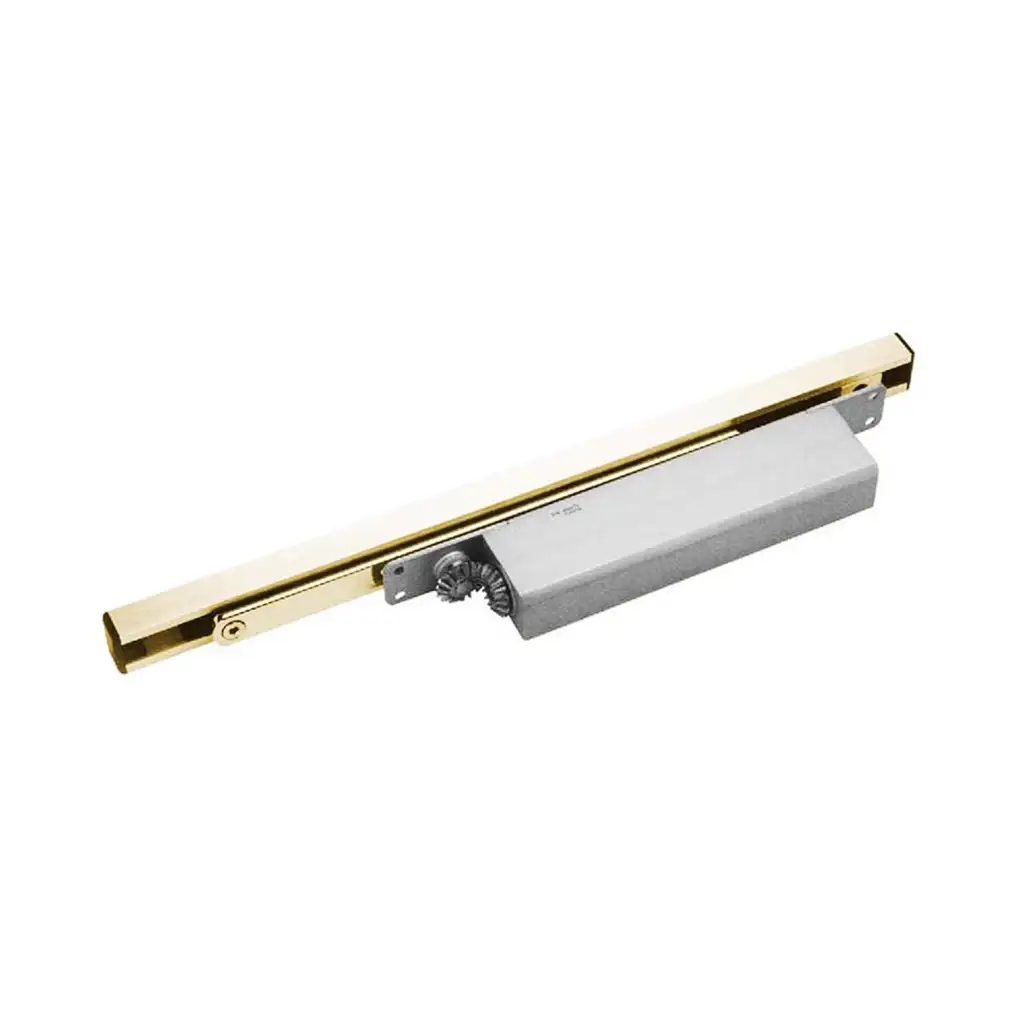

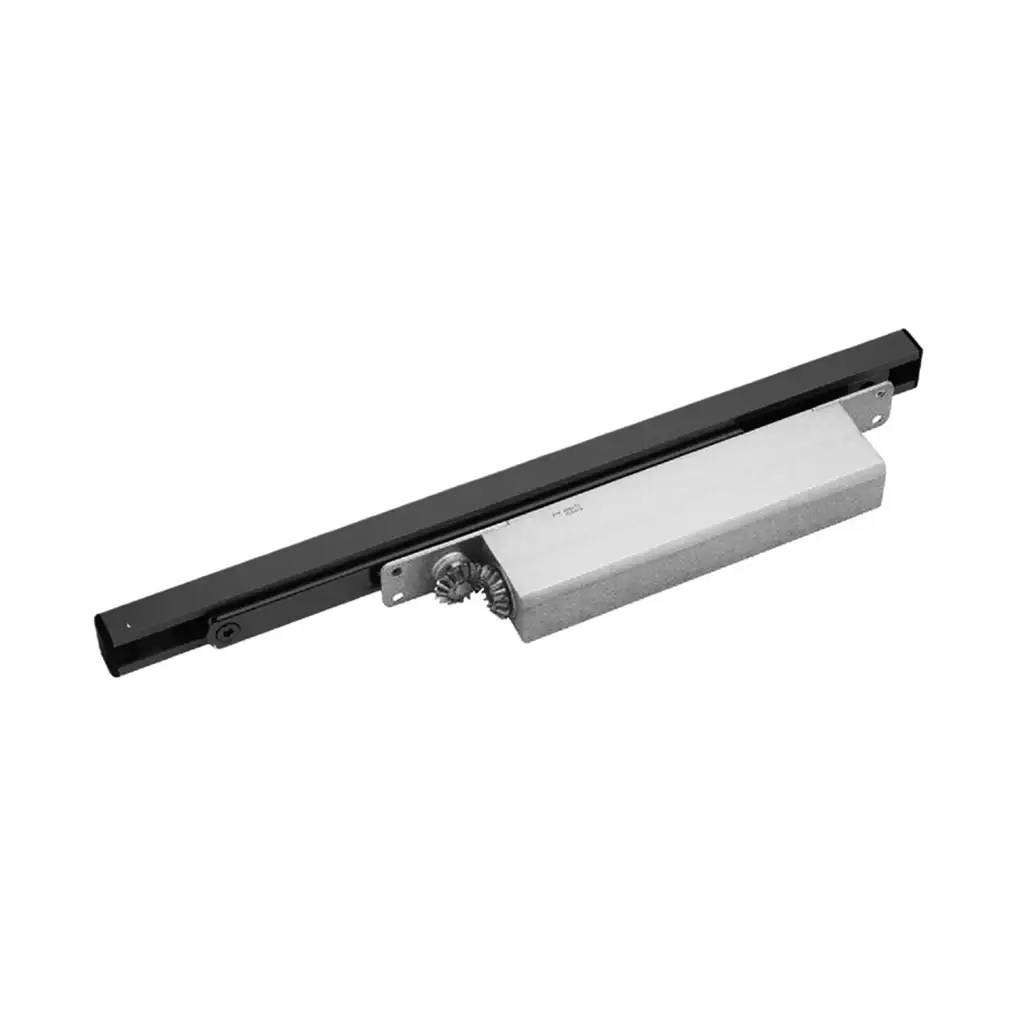

Cam action concealed door closer
- Adjustable spring power 2-5
- Standard doors: <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg, <1250mm/<100kg
- Body dimensions: Length 212 mm, Width 60 mm, Thick 40 mm
- Arm: Track (standard), Track (hold-open)
- Double action optional
- Angle of opening: 120°
- Power adjustable by spring
- Sweep speed and latching speed adjustable
- Non-handed
- Application: Track arm (standard), Transom (61) optional
- Standards: EN 1154 3|8|2|1|1|3, Warrington APT Laboratories
- Warranty: 10 years
