| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 3 to 6 |
| Standard Doors | <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg, <1400mm/<130kg |
| Body Length | 256 mm |
| Body Width | 54 mm |
| Arm | Track (Electromagnetic hold-open) |
| Double Action | Yes |
| Angle of Opening | 120° |
| Power Adjustable by Spring | Yes |
| Sweep Speed Adjustable | Yes |
| Latching Speed Adjustable | Yes |
| Non-handed | Yes |
| Application | Track arm (standard), Transom (61) optional |
| Certification | CE 2812-CPR-AD8004 |
| Warranty | 1 year |
86.317

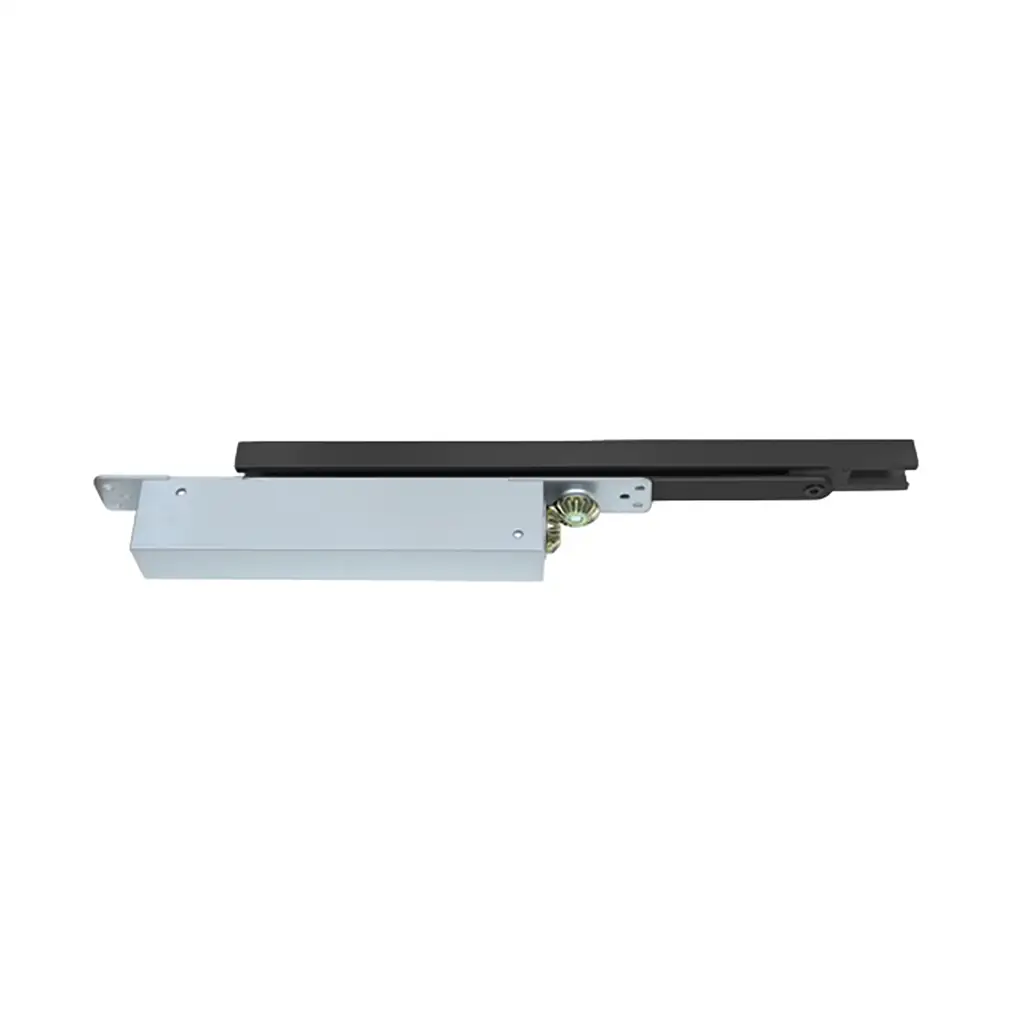

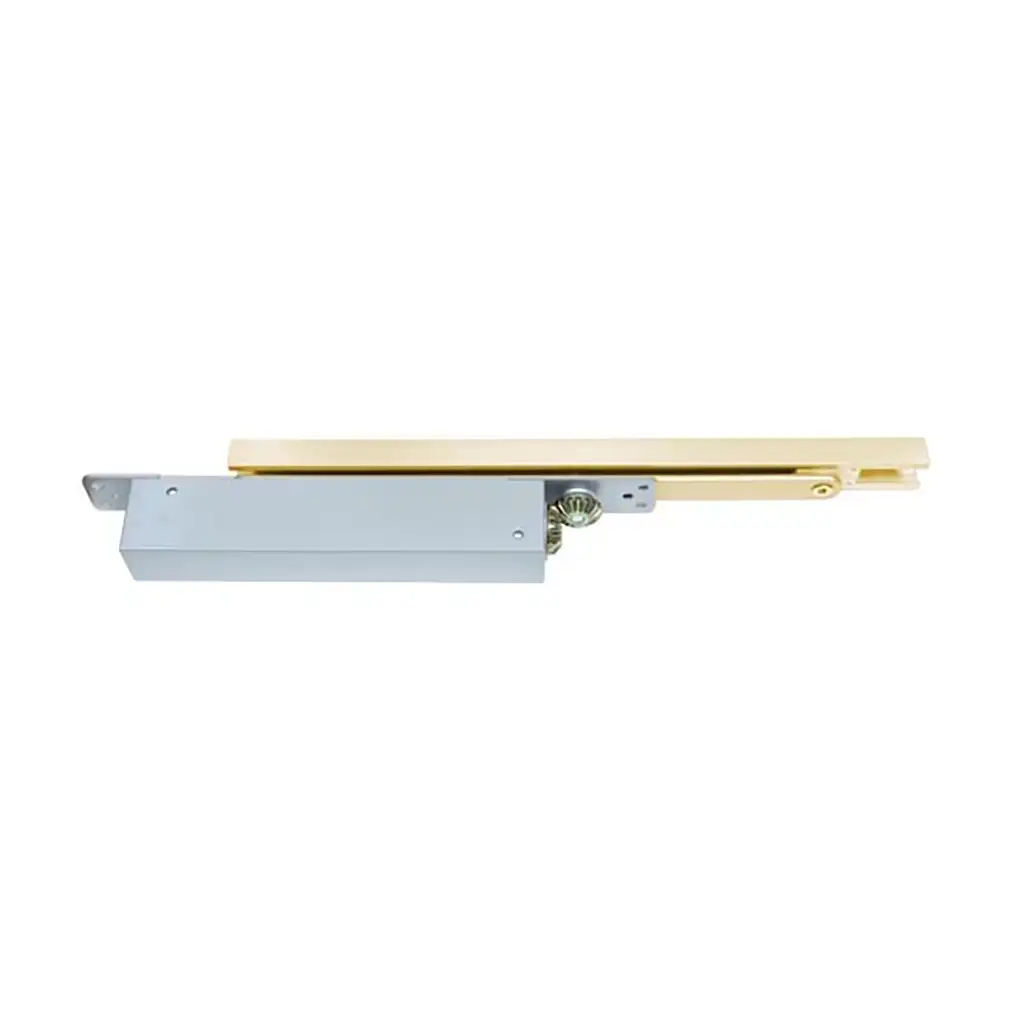

Concealed cam-action door closer
- Adjustable spring power 3-6
- Standard doors: <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg, <1400mm/<130kg

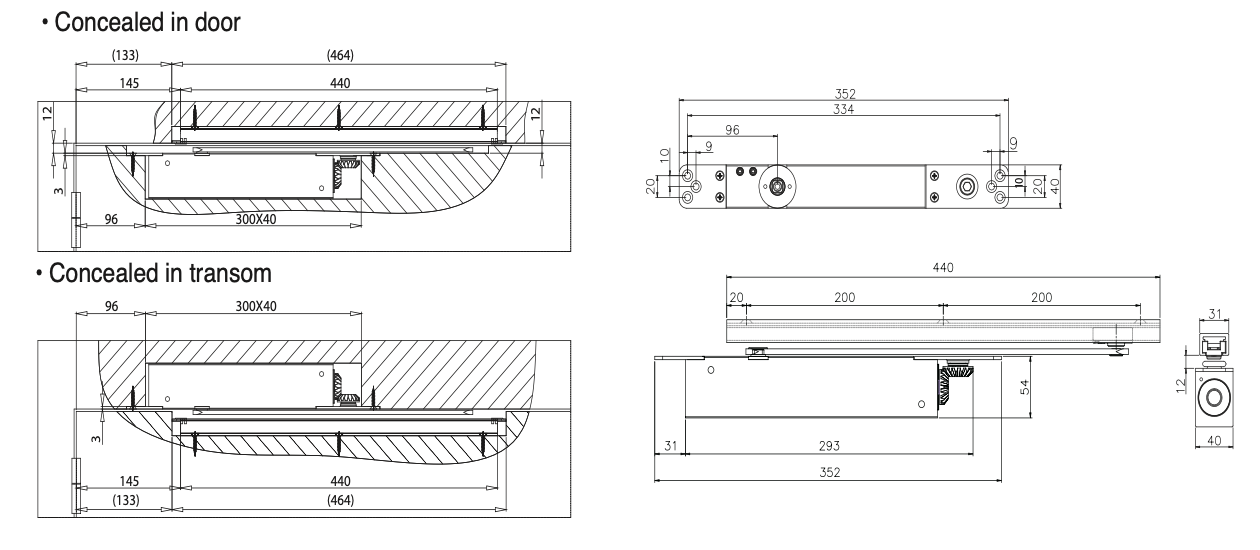

- Body dimensions: Length 256 mm, Width 54 mm
- Arm: Track (Electromagnetic hold-open)
- Double action
- Angle of opening: 120°
- Power adjustable by spring
- Sweep speed and latching speed adjustable
- Non-handed
- Application: Track arm (standard), Transom (61) optional
- Certification: CE 2812-CPR-AD8004
- Warranty: 1 year
