| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength | 2-4 |
| Durability | 500,000 cycles |
| Material | Aluminium alloy |
| Adjustable Latching Speed | Yes |
| Adjustable Closing Speed | Yes |
| Installation Type | Concealed with sliding track |
| Type | Embedded |
| Max Opening Angle | 150° |
| Mechanism | Cam Action |
| Non Handed | Yes |
| Material of Guide Rail | 6061 Steel |
| Material of Spring | 60Si2Mn |
| Backcheck | No |
| Delayed Action | No |
| Bearing | Full complement bearing for long durability |
| Application | Suitable for interior wood, glass door and frames |
| Max Door Width | 1200 mm |
| Max Door Weight | 100 Kg |
| Warranty | 3 years |
86.318

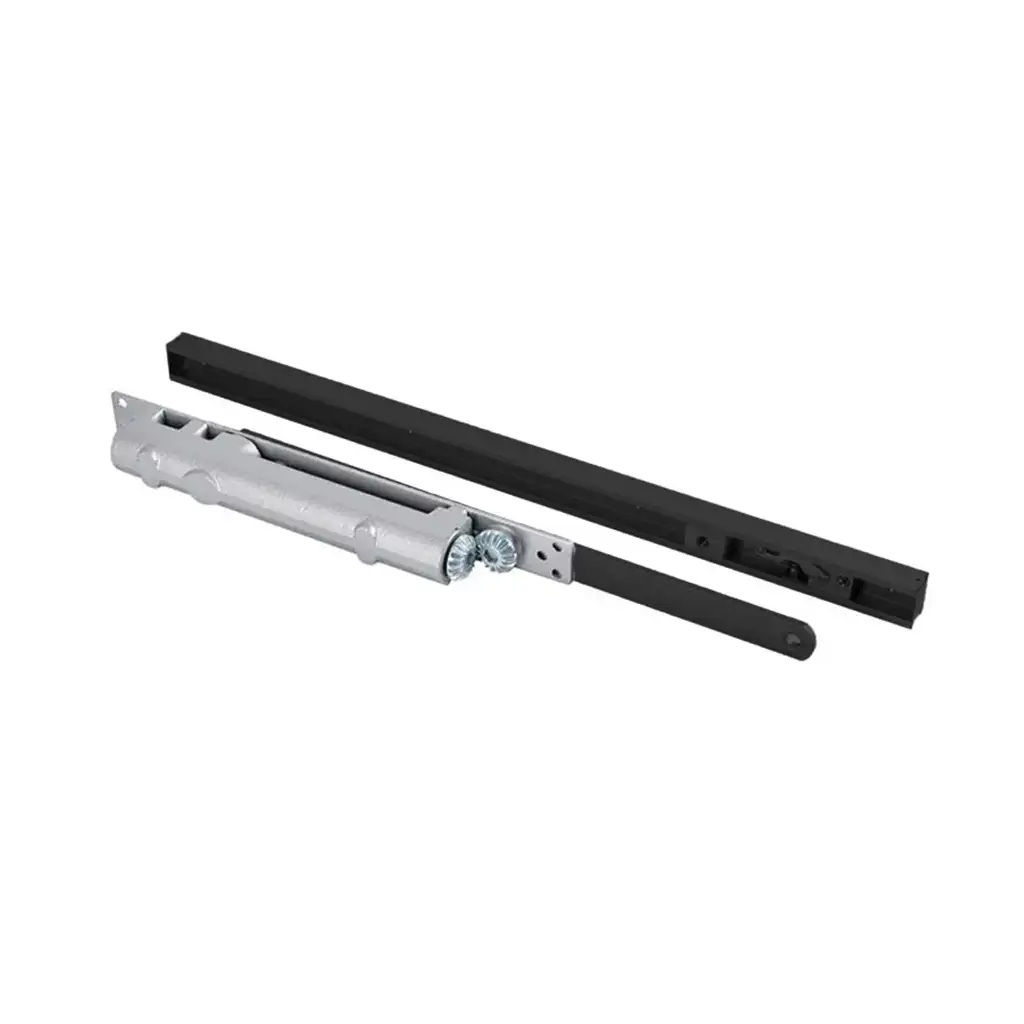

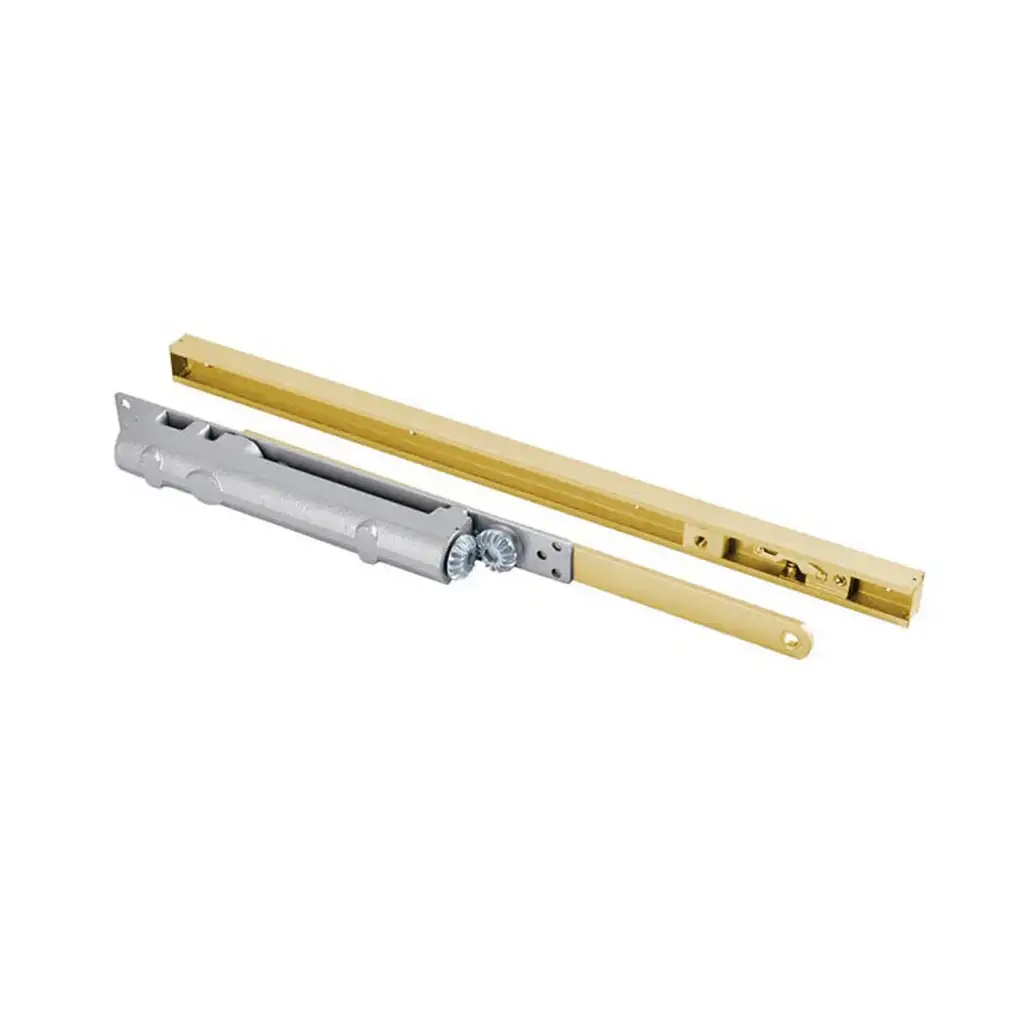

Concealed cam action door closer
- Adjustable spring power 2-4
- Medium duty concealed cam action door closer for commercial use
- Slim body with 32mm thickness
- Power shoe arm bracket — reversed to increase final closing power by approx. 15%
- Back check — cushioning effect when door is forcibly thrown open
- Durability: 500,000 cycles
- Material: Aluminium alloy
- Max door width: 1200 mm
- Max door weight: 100 Kg
- Mechanism: Cam Action
- Non-handed
- UL Listed
- Warranty: 3 years
