| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 2 to 5 |
| Standard Doors | 850mm/45kg, 950mm/60kg, 1100mm/80kg |
| Body Length | 225 mm |
| Body Width | 61 mm |
| Body Thick | 37 mm |
| Arm | Track (standard), Track (hold-open) |
| Angle of Opening | 120° |
| Back-check | Adjustable by Valve |
| Fire Test | BS EN 1634-1:2000, WF Report No. 378266 |
| Warranty | 5 years |
86.215

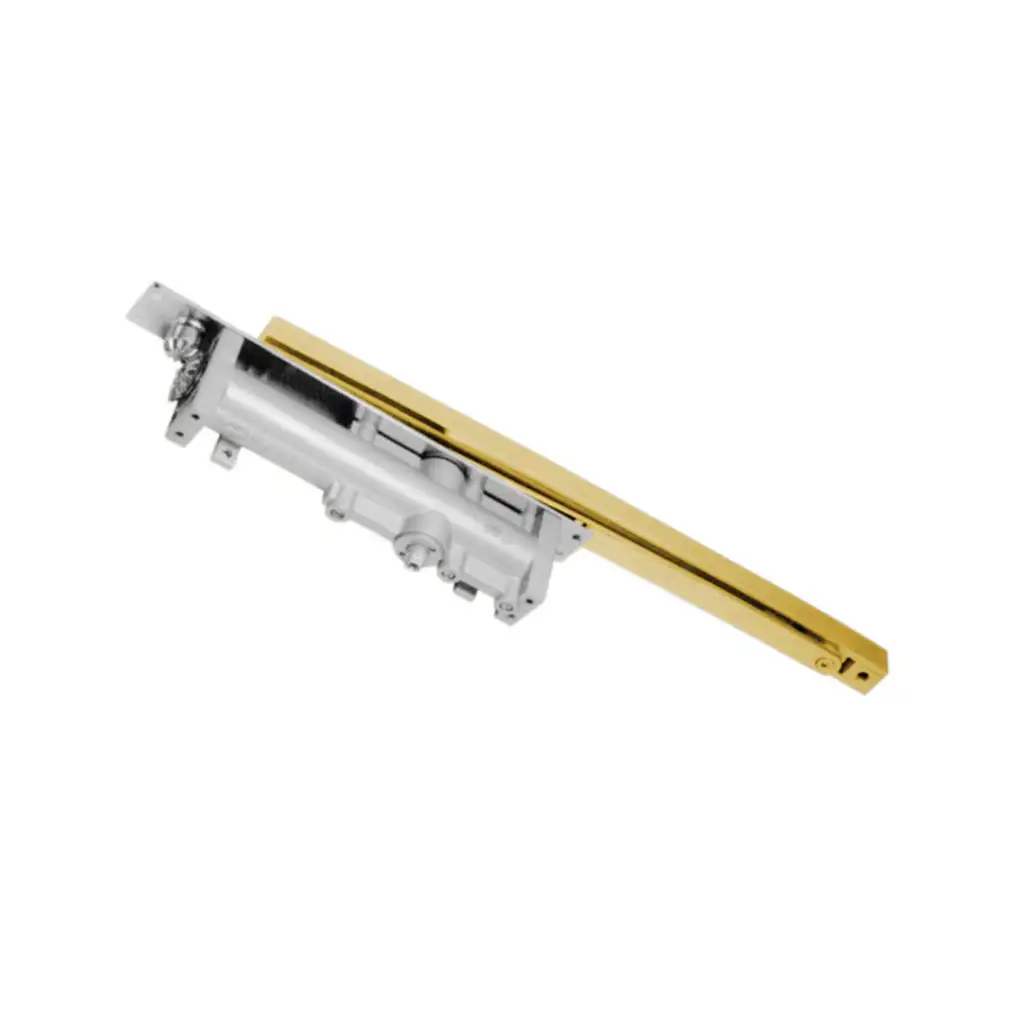

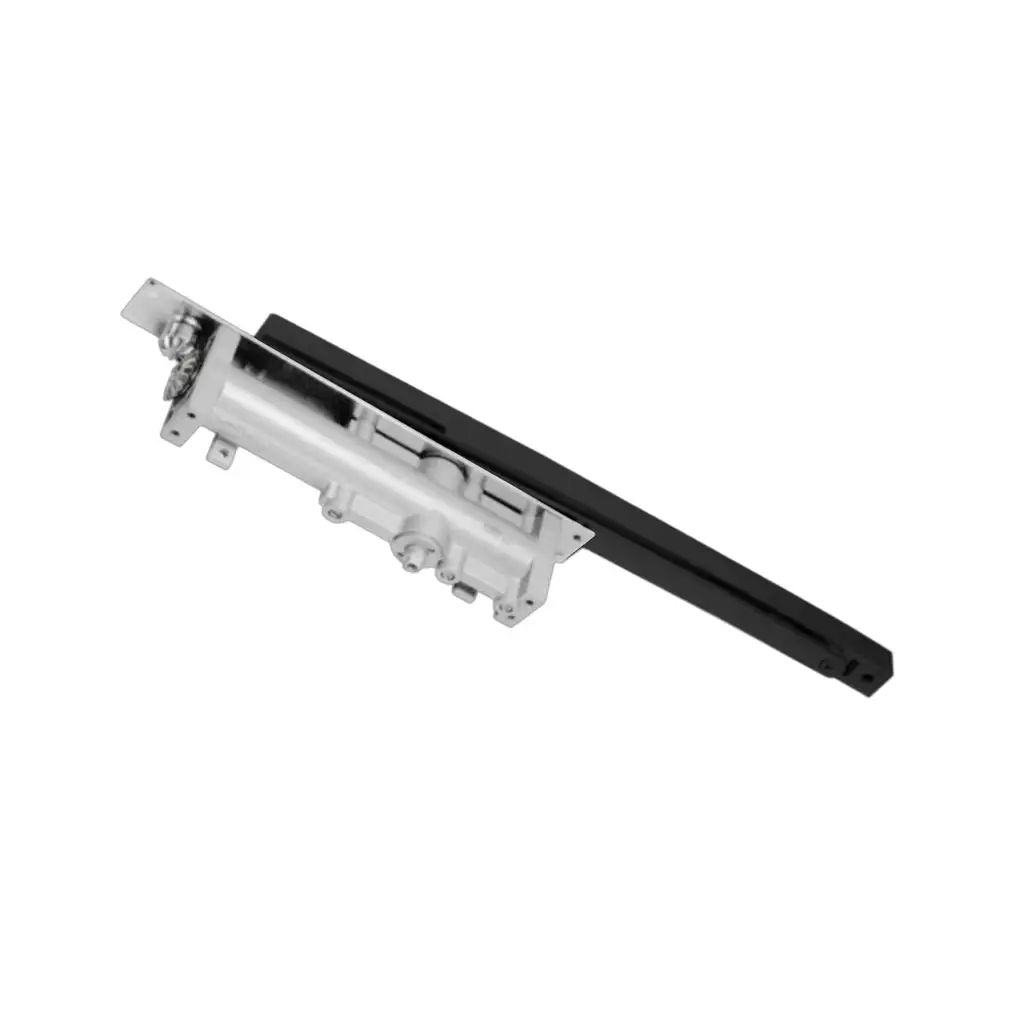

Overhead concealed door closer
- Adjustable spring power 2-5
- Standard doors: 850mm/45kg, 950mm/60kg, 1100mm/80kg
- Body dimensions: Length 225 mm, Width 61 mm, Thick 37 mm
- Arm: Track (standard), Track (hold-open)
- Rack and pinion
- Angle of opening: 120°
- Power adjustable by spring
- Latching speed adjustable
- Hold-open: Without hold-open (standard), Hold-open track arm
- Back-check: Adjustable by Valve
- Non-handed
- Fire Tested to BS EN 1634-1:2000 — WF Report No. 378266
- Delayed action — provides prolonged closing time to assist passage of trolleys, wheel chairs, elderly people etc.
- Warranty: 5 years
