| Specification | Value |
|---|---|
| Variable Closing Force Spring Strength (EN) | 2 to 4 |
| Standard Doors | <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg |
| Body Length | 210 mm |
| Body Width | 53.5 mm |
| Body Thick | 32 mm |
| Arm | Track (standard), Track (hold-open) |
| Double Action | Yes |
| Angle of Opening | 120° |
| Power Adjustable by Spring | Yes |
| Sweep Speed Adjustable | Yes |
| Latching Speed Adjustable | Yes |
| Non-handed | Yes |
| Standards | EN 1154 4|8|3|1|1|3, CE 2812-CPR-AD5459 |
| Tested By | Warrington APT Laboratories |
| Warranty | 10 years |
86.315

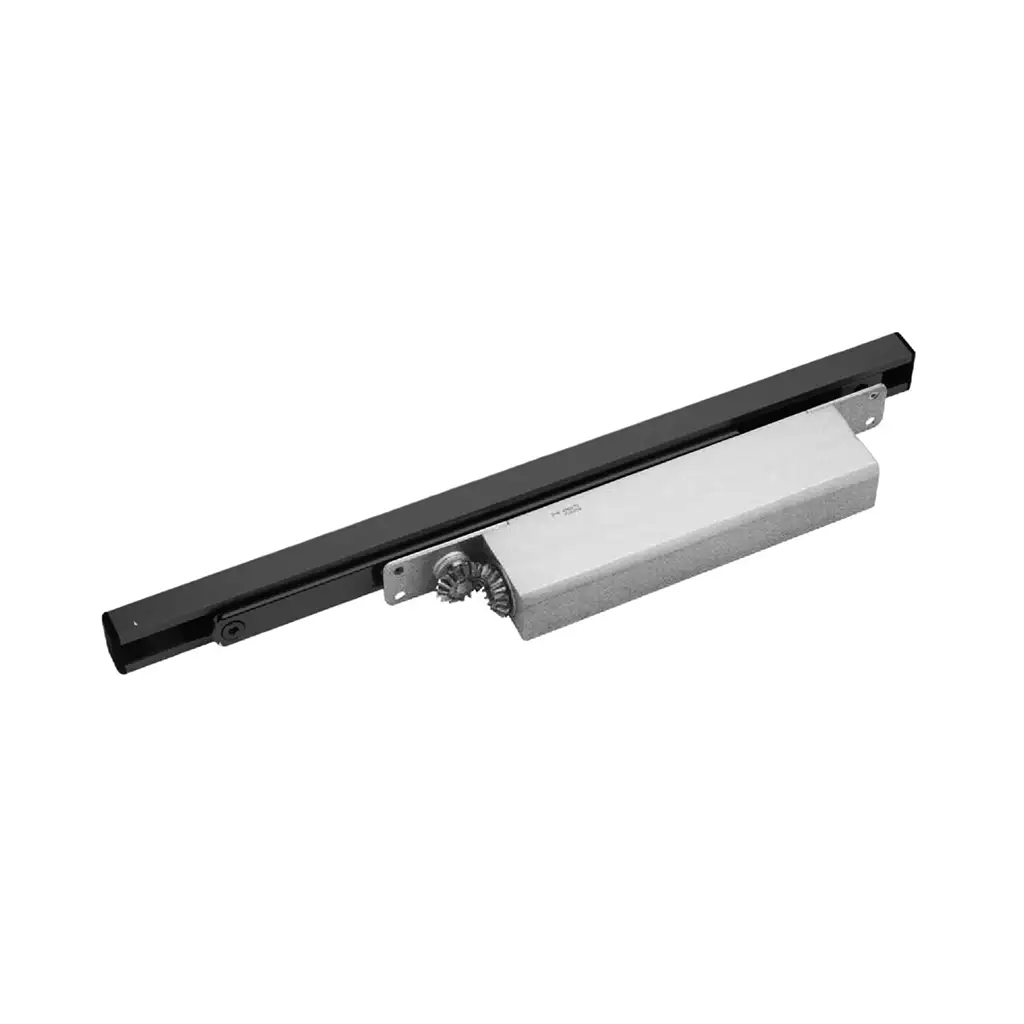

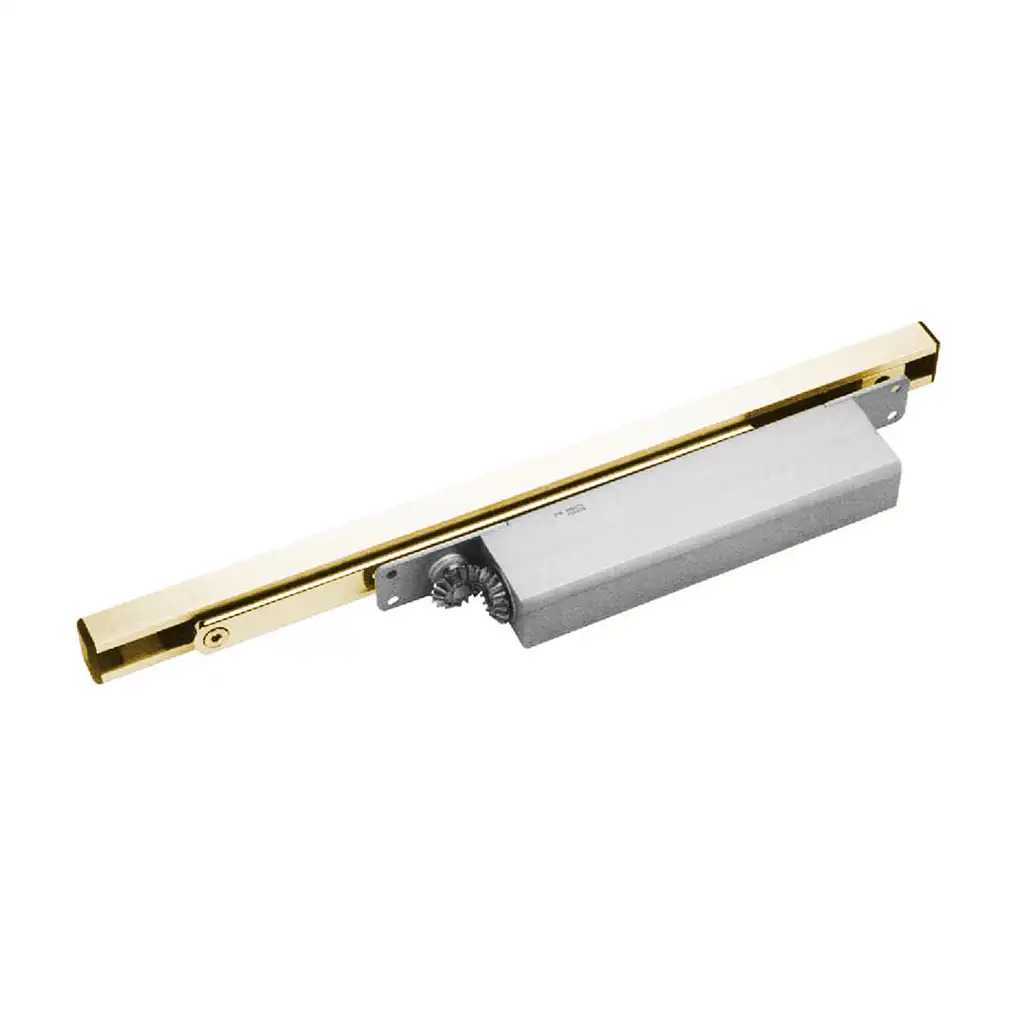

Cam action concealed door closer
- Adjustable spring power 2-4
- Standard doors: <850mm/<40kg, <950mm/<60kg, <1100mm/<80kg
- Body dimensions: Length 210 mm, Width 53.5 mm, Thick 32 mm
- Arm: Track (standard), Track (hold-open)
- Double action
- Angle of opening: 120°
- Power adjustable by spring
- Sweep speed and latching speed adjustable
- Non-handed
- Standards: EN 1154 4|8|3|1|1|3, CE 2812-CPR-AD5459
- Tested by Warrington APT Laboratories
- Warranty: 10 years
