86.314

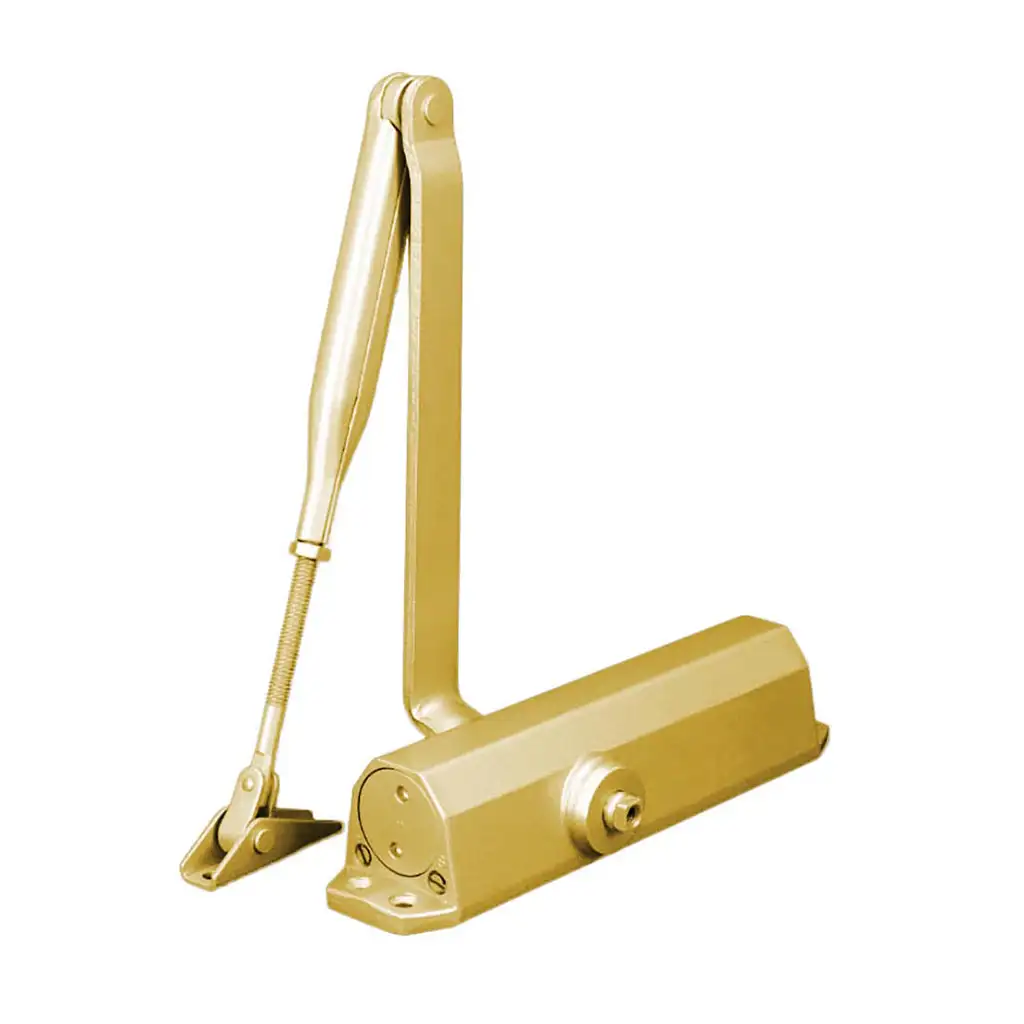

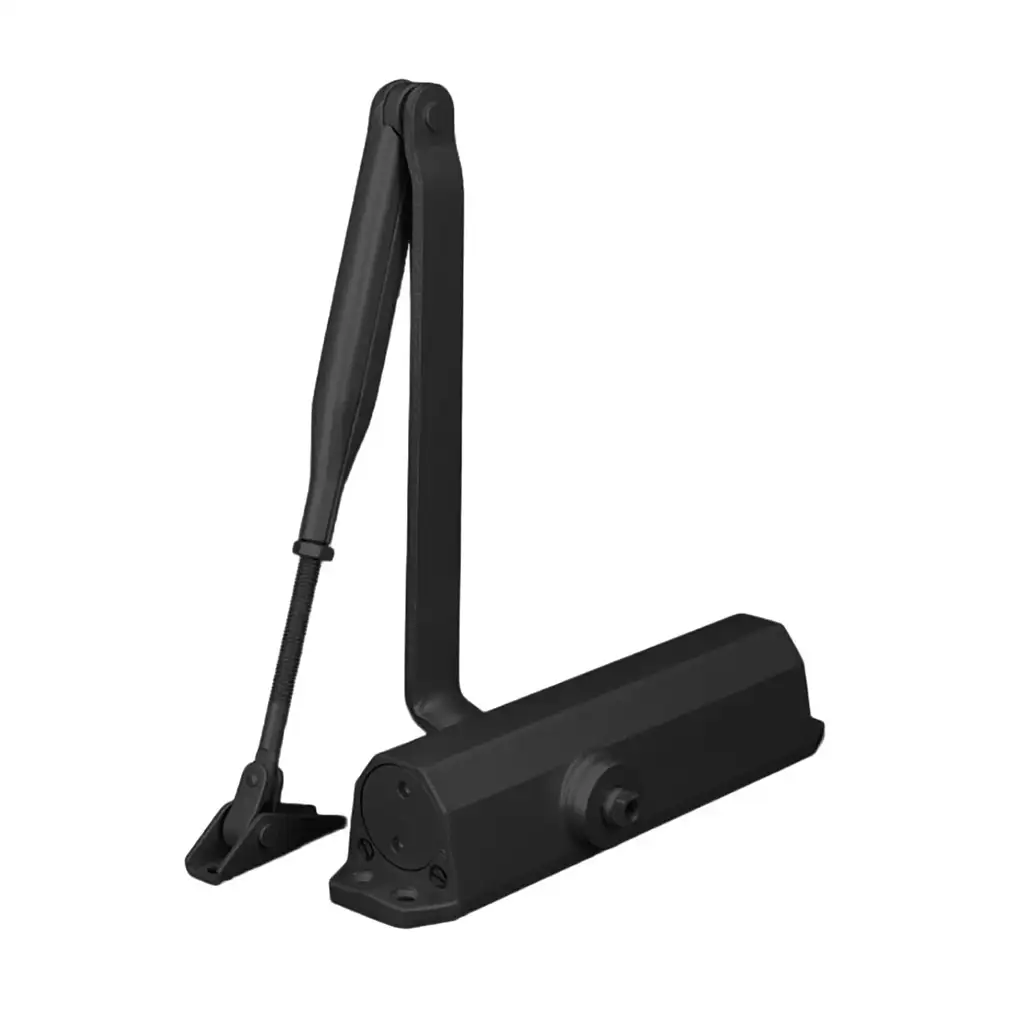

Surface mounted door closer
- Adjustable spring power 2-4
- Door weight: 25kg – 85kg
- Door width: 900mm – 1050mm

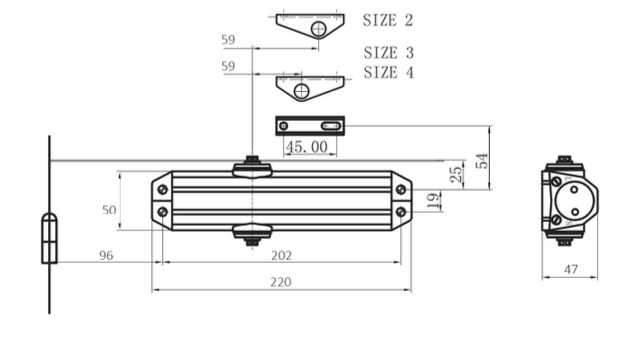

- Body dimensions: Length 220 mm, Width 50 mm, Thick 45 mm
- Arm: Track (standard), Track (hold-open) optional
- Angle of opening: 120°
- Power adjustable by spring
- Application: Regular (1), Transom (61) — optional
- Back check: optional
- Approved CF 10337
