| Specification | Value |
|---|---|
| Spring Strength | Fixed EN3/6 |
| Durability | 100,000 cycles |
| Adjustable Latching Speed | Yes |
| Adjustable Closing Speed | Yes |
| Installation Type | Regular, Top Jamb, Parallel |
| Max Opening Angle | 115° |
| Arm Type | Detachable |
| Mechanism Type | Rack & Pinion |
| Door Handing | Non handed |
| Materials of Body | Die-cast Aluminum |
| Max Door Width | 1500mm |
| Max Door Weight | 150 Kgs |
| UL Listed | CERTIFIRE Certificate No. R27326 |
| Backcheck | Yes |
| Delayed Action | No |
| Fitting Application | Regular, Top Jamb, Parallel |
| Body Construction | Heat-treated pinion and steel piston |
| Warranty | 3 Years |
86.224

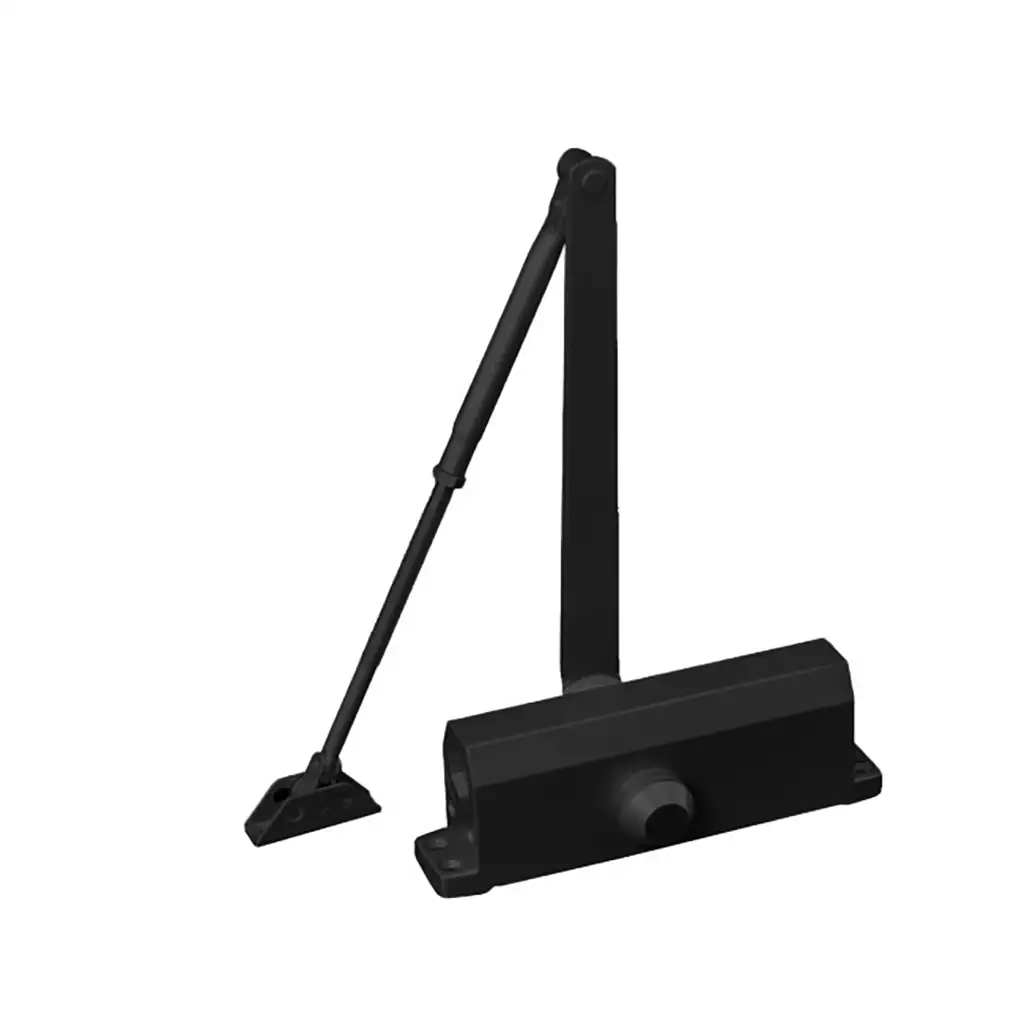

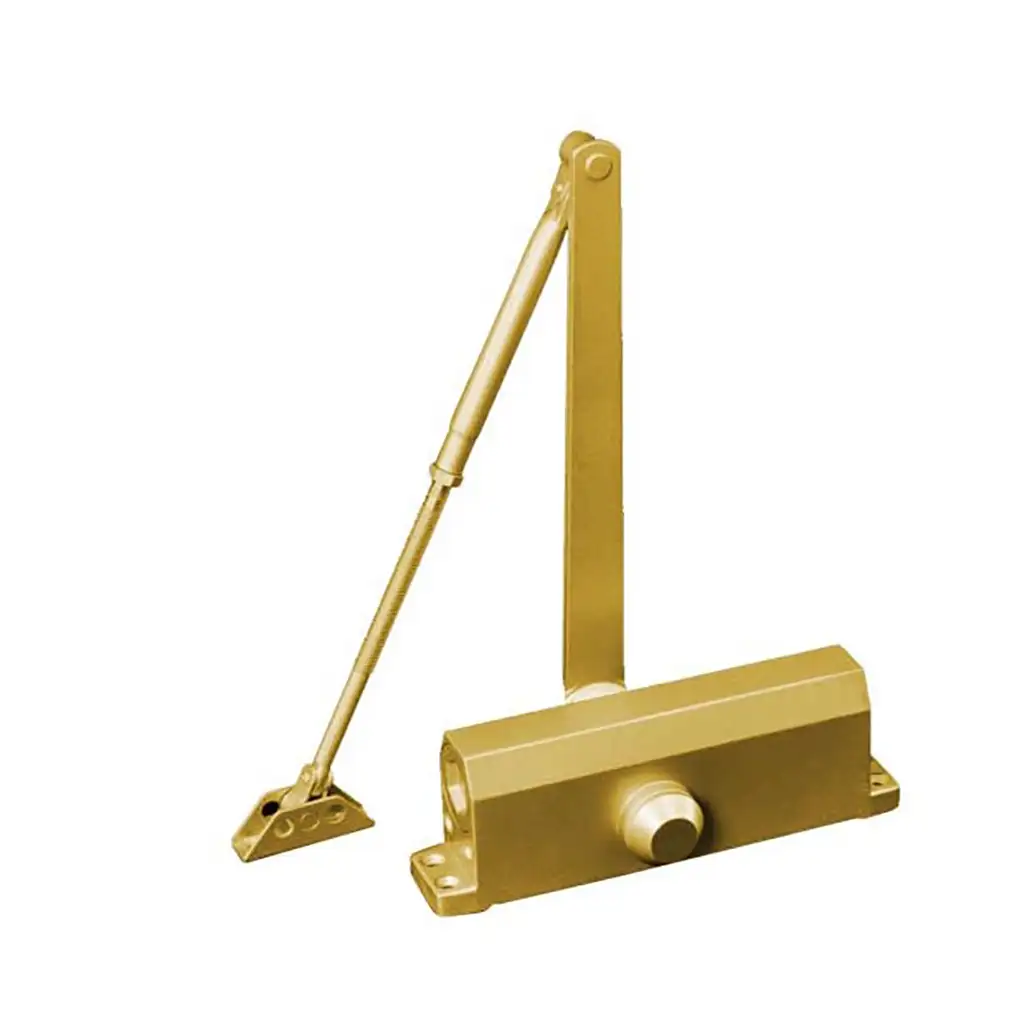

Surface mounted overhead door closer
- Spring power EN3 & EN6 (Fixed)
- Durability: 100,000 cycles
- Material: Die-cast Aluminum
- Adjustable latching speed
- Adjustable closing speed
- Installation type: Regular, Top Jamb, Parallel
- Max opening angle: 115°
- Arm type: Detachable
- Mechanism: Rack & Pinion
- Door handing: Non handed
- Max door width: 1500mm
- Max door weight: 150 Kgs
- UL Listed — CERTIFIRE Certificate No. R27326
- Backcheck: Yes
- Body construction: Heat-treated pinion and steel piston
- Warranty: 3 Years
