86.213

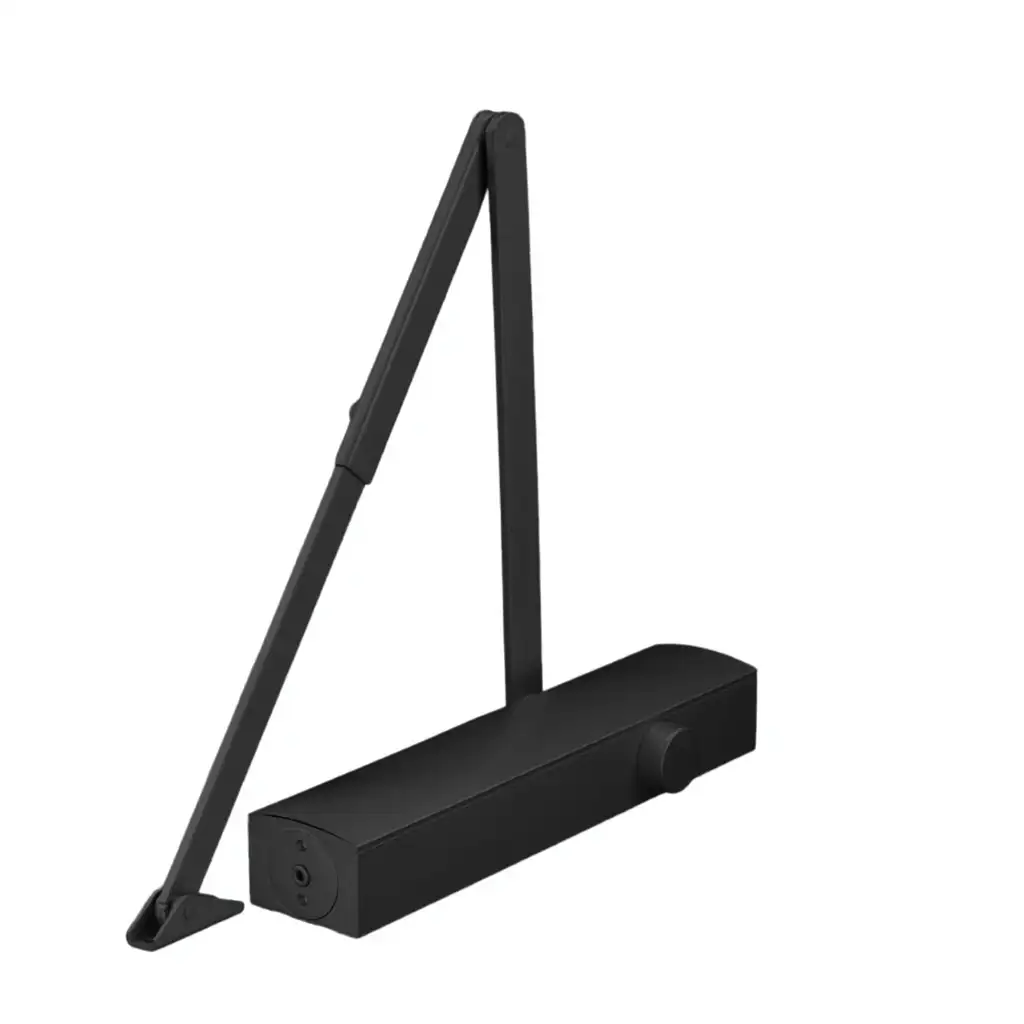

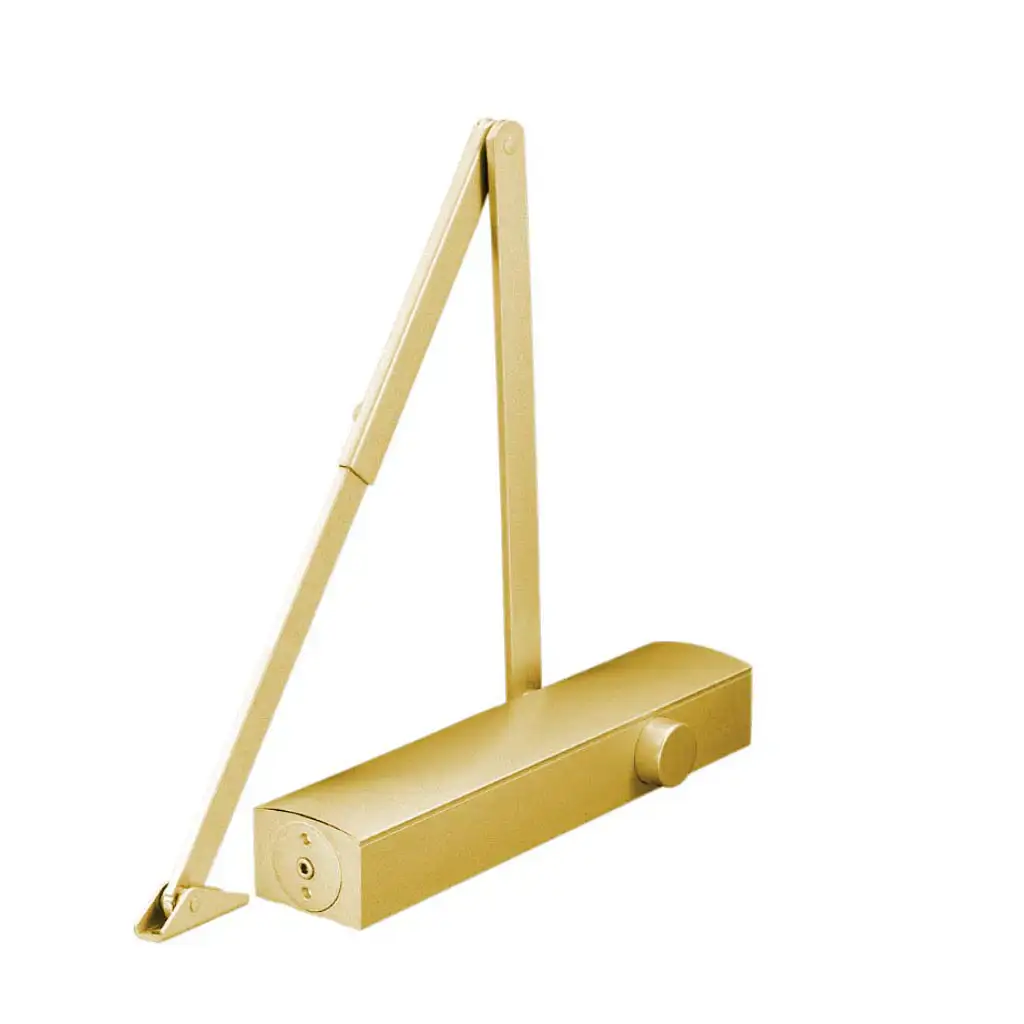

Surface mounted door closer
- Adjustable spring power 3-6
- Door weight: 45kg – 150kg
- Door width: Up to 1500mm

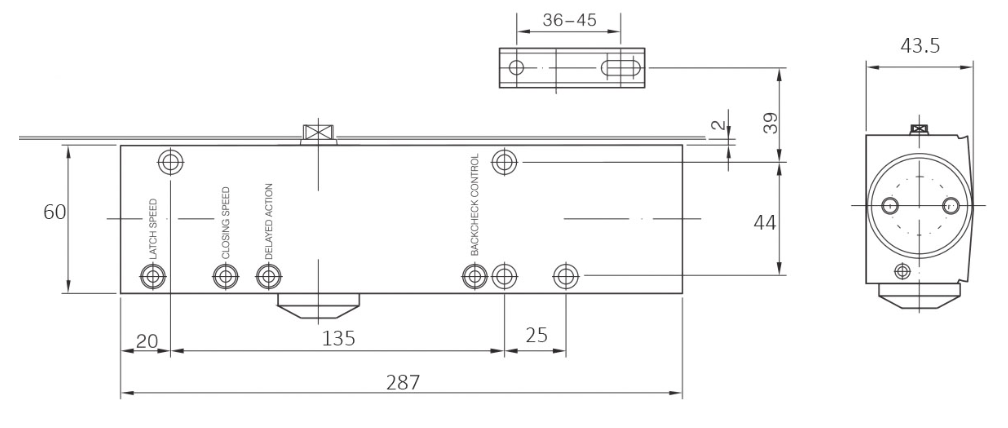

- Body dimensions: Length 287 mm, Width 60 mm, Height 42.5 mm
- Arm: Standard, Parallel, Track (standard), Track (hold-open) — optional
- Rack and pinion
- Power shoe arm bracket
- Angle of opening: 180°
- Power adjustable by spring
- Sweep speed adjustable
- Latching speed adjustable
- Back check: Adjustable at valve
- Hold open arm (optional)
- Delayed action adjustable (optional)
- Non-handed
- Approved CF 10337
- Warranty: 5 years
