| Specification | Value |
|---|---|
| Closing Force | EN Size 4 |
| Max Door Width | 1100mm |
| Max Door Weight | 60kg |
| Application | Fig 1, Fig 6, Fig 66 |
| Mechanism | Rack & Pinion (standard) / Cam & Roller (optional) |
| Angle of Opening | 180° |
| Door Handing | Non handed |
| Power Adjustment | By spring / By template |
| Slide Covers | E (Radius), B (Square), L |
| Extended Loop | 650mm |
| Finishes Silver | PAL, PAA, SAA, SS, PS |
| Certification | CE Marked, Certifire Approved |
| Warranty | 1 year |

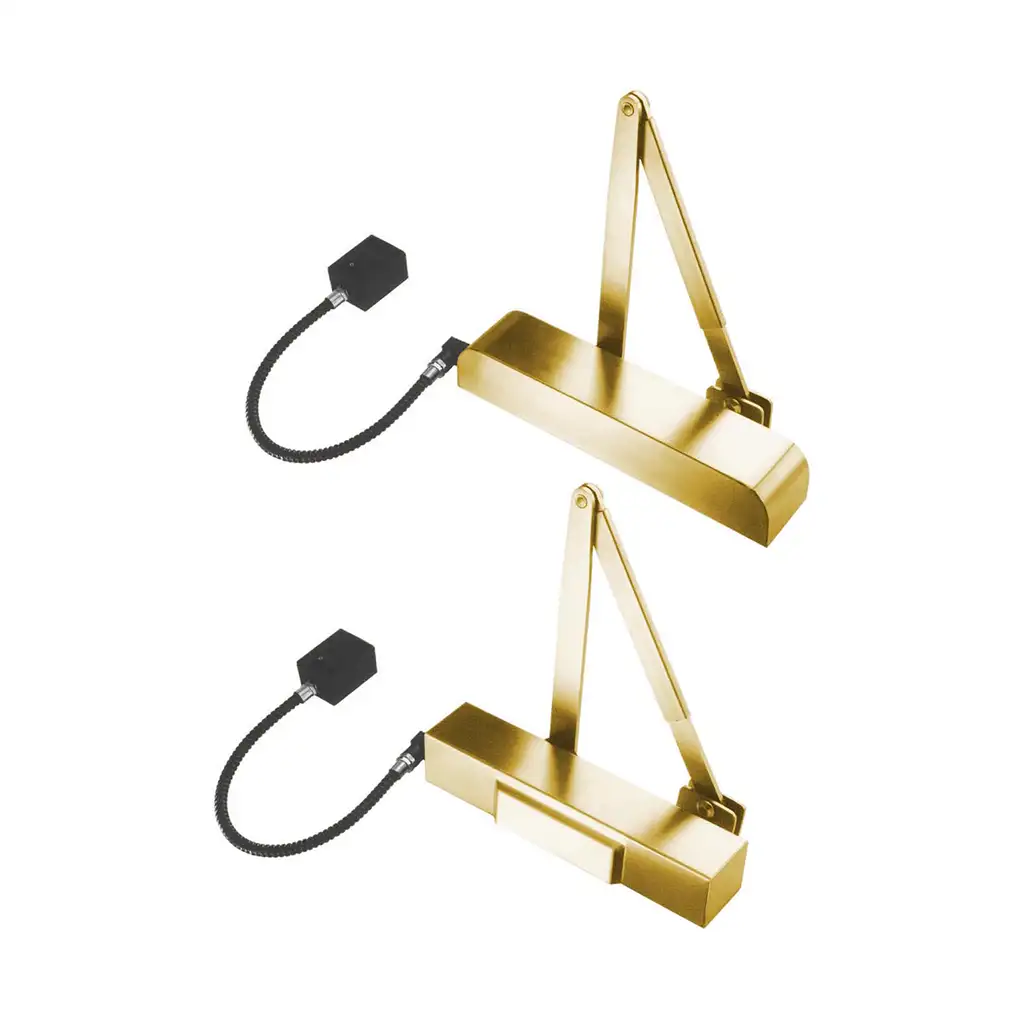

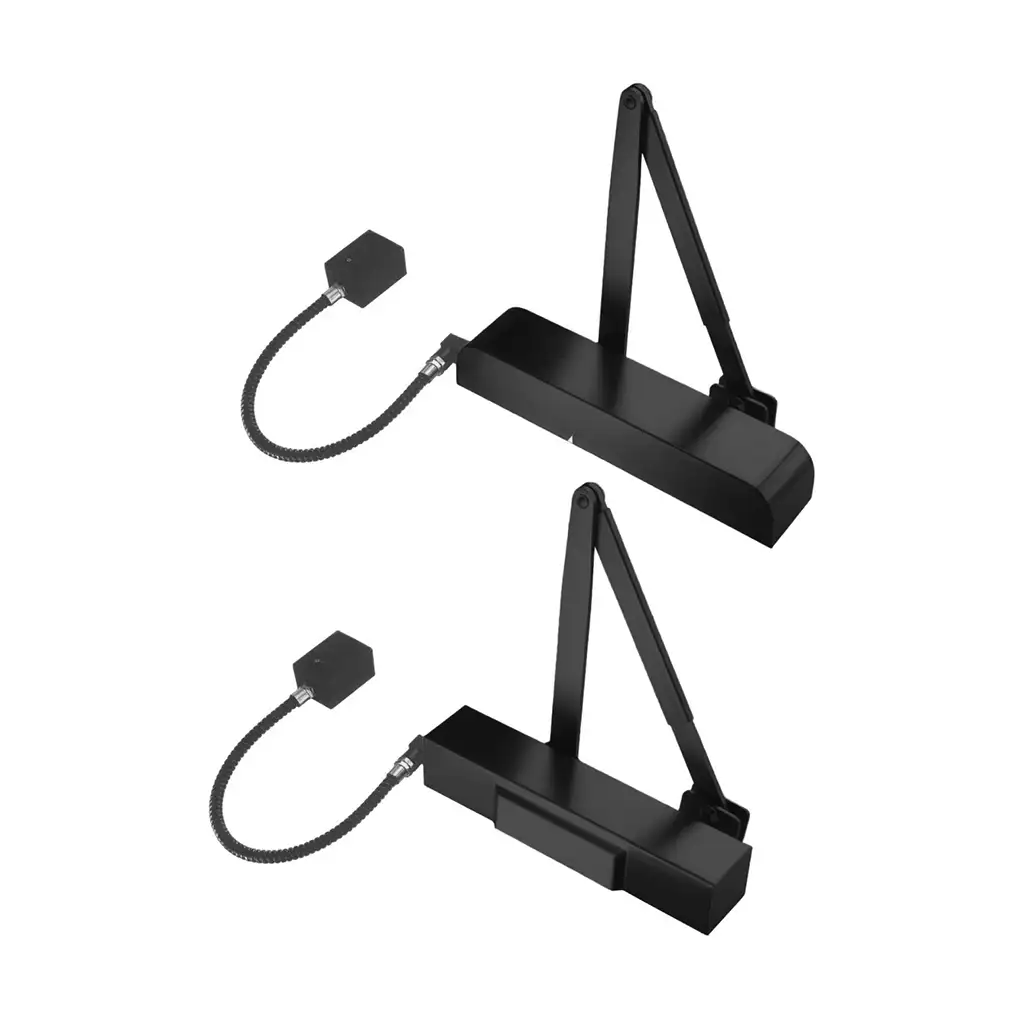

86.601 EM
Electro-hydraulic door closer with cover & matching adjustable arm
- Available with Radius or Square cover
- Closing force: EN Size 4
- Door size max: Width 1100mm, Weight 60kg
- Application: Fig 1, Fig 6, Fig 66
- Mechanism: Rack & Pinion (standard) / Cam & Roller (optional)
- Angle of opening: 180°
- Non-handed
- Power adjustment: By spring / By template
- CE Marked, Certifire approved
- Warranty: 1 year
