| Specification | Value |
|---|---|
| Type | Floor spring — Double or single action |
| Body Dimensions | 306 mm long x 108 mm wide x 40 mm high |
| Closing Force | Light: 20Nm (14.8 ft-lbs), Medium: 27Nm (13.7 ft-lbs), Heavy: 37Nm (28 ft-lbs) |
| Max Door Width | Light: 850mm, Medium: 950mm, Heavy: 1100mm |
| Max Door Weight | 150 kg |
| Mechanical Hold-Open | 90° (Optional at 150°) |
| Max Opening Angle | 130° |
| Fire Test | BS1634-1:2000 for 4 Hours — Exova Warrington WF157438 |
| Certification | UL R37999 |
| Warranty | 10 years |
86.260
Floor spring

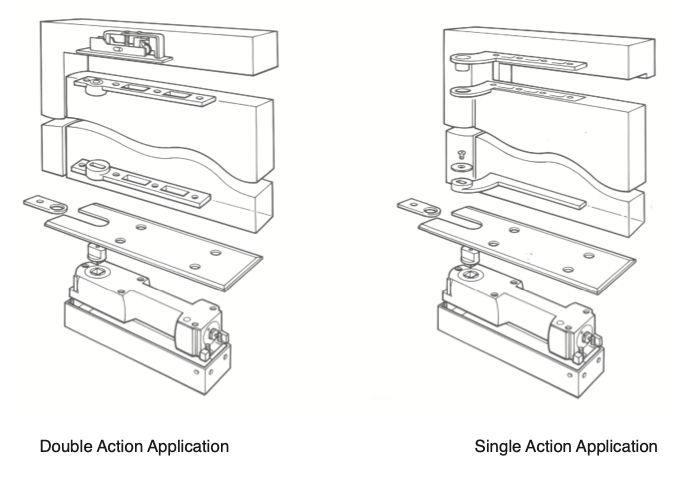

- For double action or single action application
- Adjustable closing & latching speed
- Two non-critical valves provide dual speed hydraulic closing (closing from 130°–15°, latching from 15°–0°)
- Maximum door opening angle of 130°
- Built-in cushioned stop from approx. 85°
- Mechanical hold-open at 90° (Optional at 150°)
- Body dimensions: 306 mm long x 108 mm wide x 40 mm high
- High grade cast iron mechanism body housed within a galvanized steel loose box
- Stable hydraulic fluid for any climatic operation & constant lubrication
- Suitable for timber, metal & tempered glass doors
- Built-in pressure relief valve protects the closer from rough use
- Fire Tested to BS1634-1:2000 for 4 Hours by Exova Warrington WF157438
- UL Listed R37999
- Warranty: 10 years
