89.501
89.501 - Image 2
Code Length x Width x Thickness
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)		 EN1935
Grade
Size Type Qty.
89.501 127 x 76 x 3 1¼ x 12 Brass 8 80 12

Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead door closer

89.501

Brass four ball bearing hinges with finials
Four ball bearing hinge with stainless steel fixed pin, four thrust
bearing and button tip at both ends.
• Available with congruent (zig zag) or template drilled screw holes.

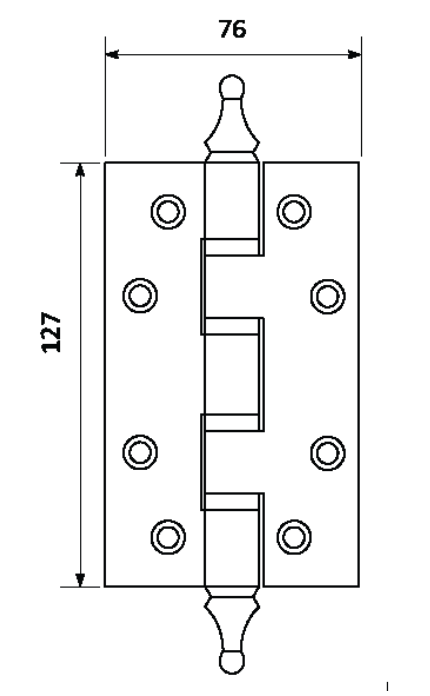

Drawing
Drawing
