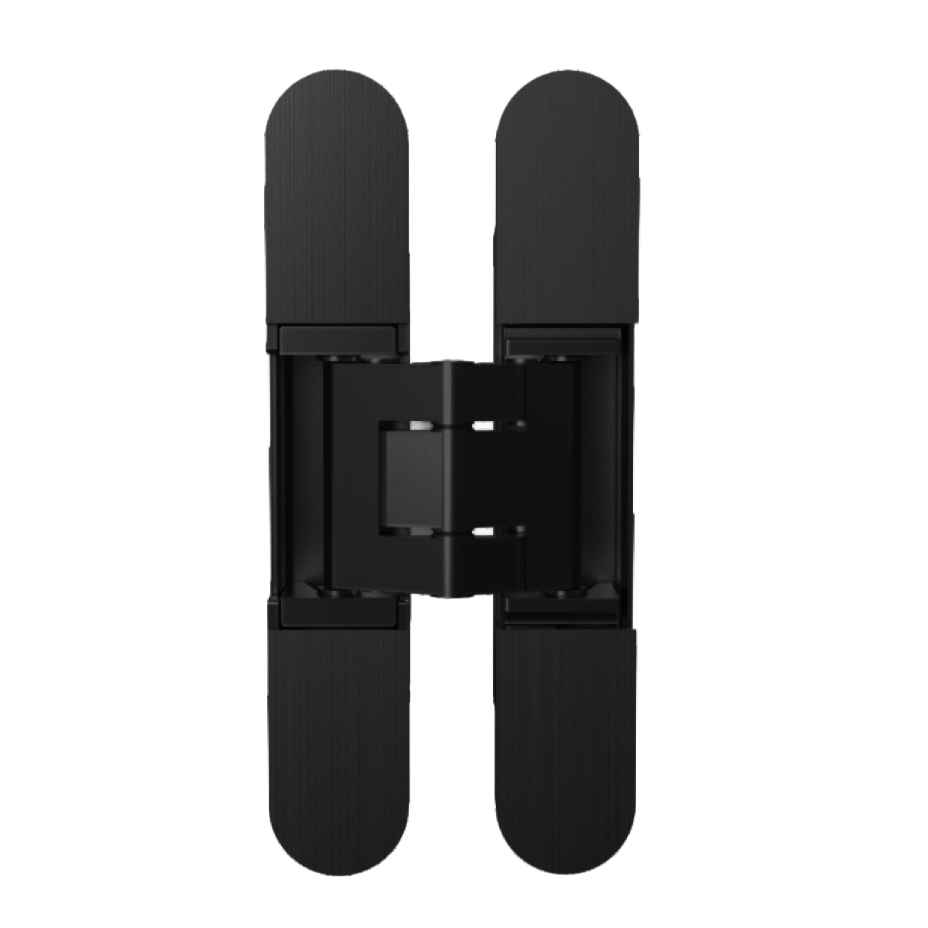

89.377

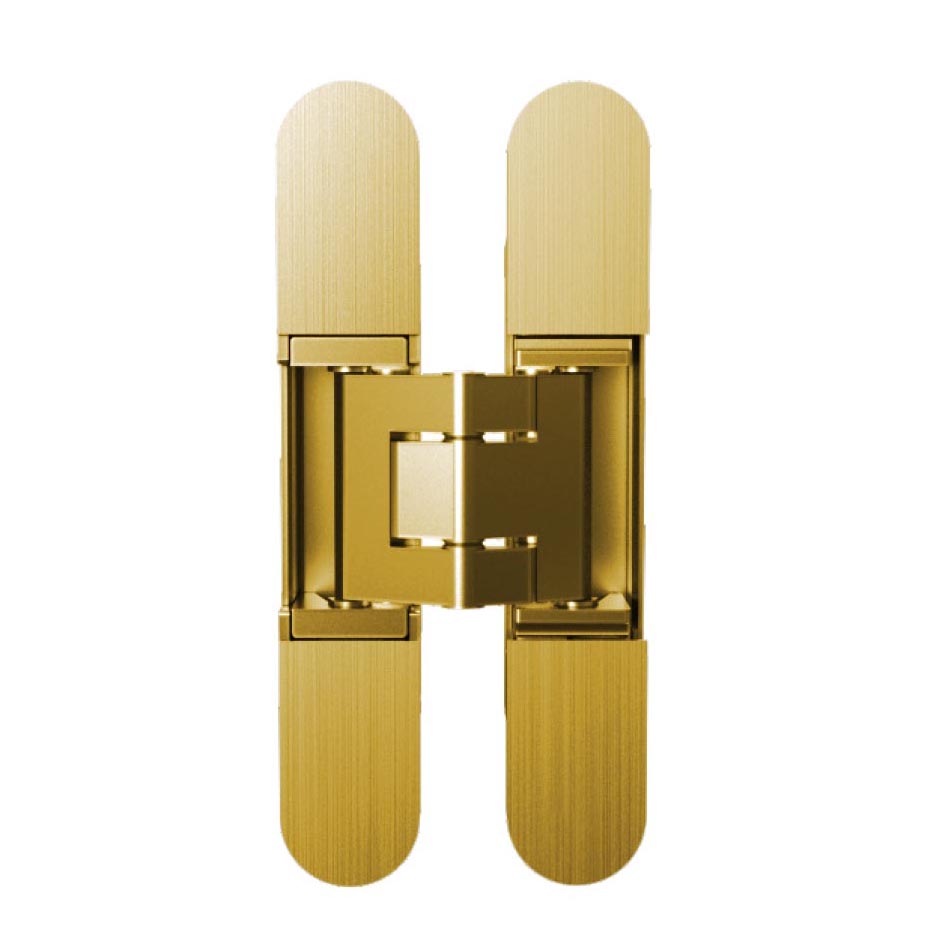

89.377 - Image 2
Code Length x Width
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
89.377 160 x 28 1¼ x 8 NP 4 120

Weight capacity is based on three hinges per door

Cover Plates Options :
A- Clipped Cover Plates (supplied as standard)
B- Cover Plates With Screw Fixing

89.377

Concealed hinges
3D concealed hinge with clipped cover plates
no screws visible on front plates
Data and features
Door : Wood door, Steel door, Profile door, Folding door
Load capacity : 120 kg
Length : 160 mm
Min. Door Thickness : More than 38 mm
Adjustment in 3 directions : Side: +/- 2.5mm, Height : +/- 2mm, Depth : +/- 1mm,
Opening angle : Up to 180 degree
BS Standard : EN1935, Tested to EN1634-1:2014 + A1:2018
Fire Rating : 120 Munites
Handed : Non handed design
Material : SS 304
Finish : SS, PS, AB, PVD
Quantity for single door : 3 pcs

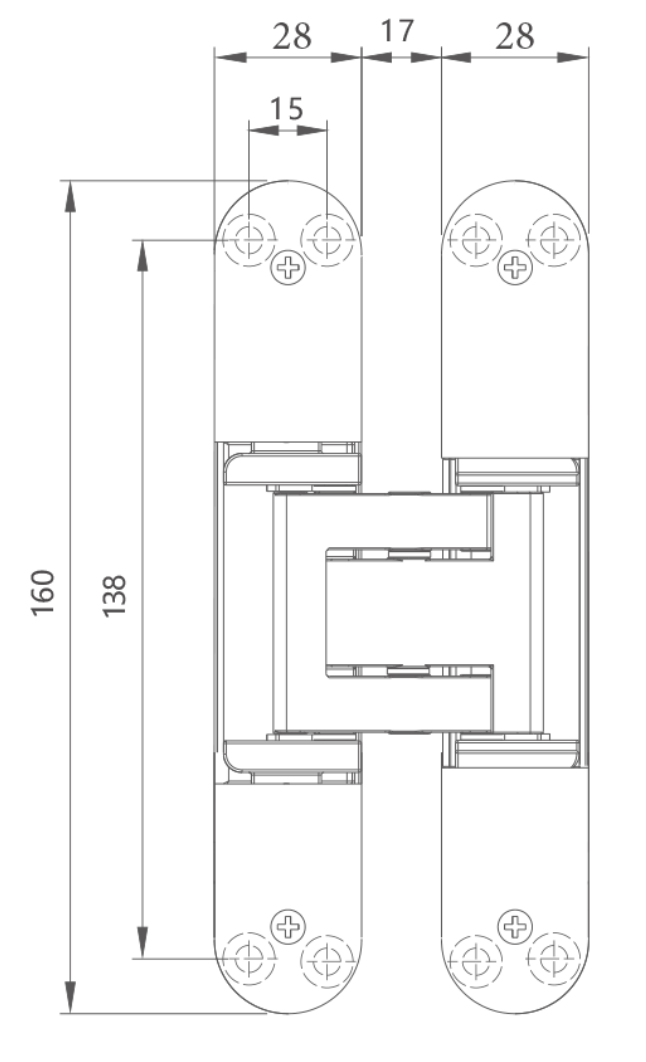

Drawing
Drawing
