89.385
89.385 - Image 2
Code Length x Width x Thickness
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)		 EN1935
Grade
Size Type Qty.
89.385 127 x 114 x 3 1¼ x 10 S/S 8 120 13

Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead Door Closer

89.385

Stainless steel two ball bearing hinges
Heavy duty hinge with stainless steel fixed pin, 2 thrust
bearing and button tip at both ends.
• Wooden and metal doors and frames.
• Standard : EN 1935:2002 / AC:2003
• Class : 4 7 6 1 1 4 0 13
• Corrosion resistance Grade 4 : 240 Hrs

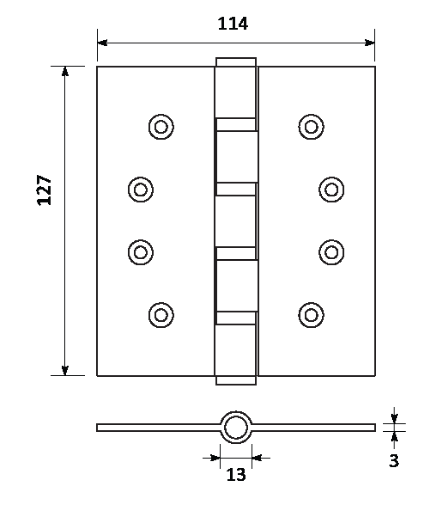

Drawing
Drawing
