89.368
89.368 - Image 2
Code Length x Width
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
89.368 180 x 28 1¼ x 8 NP 4 120

Weight capacity is based on three hinges per door

89.368

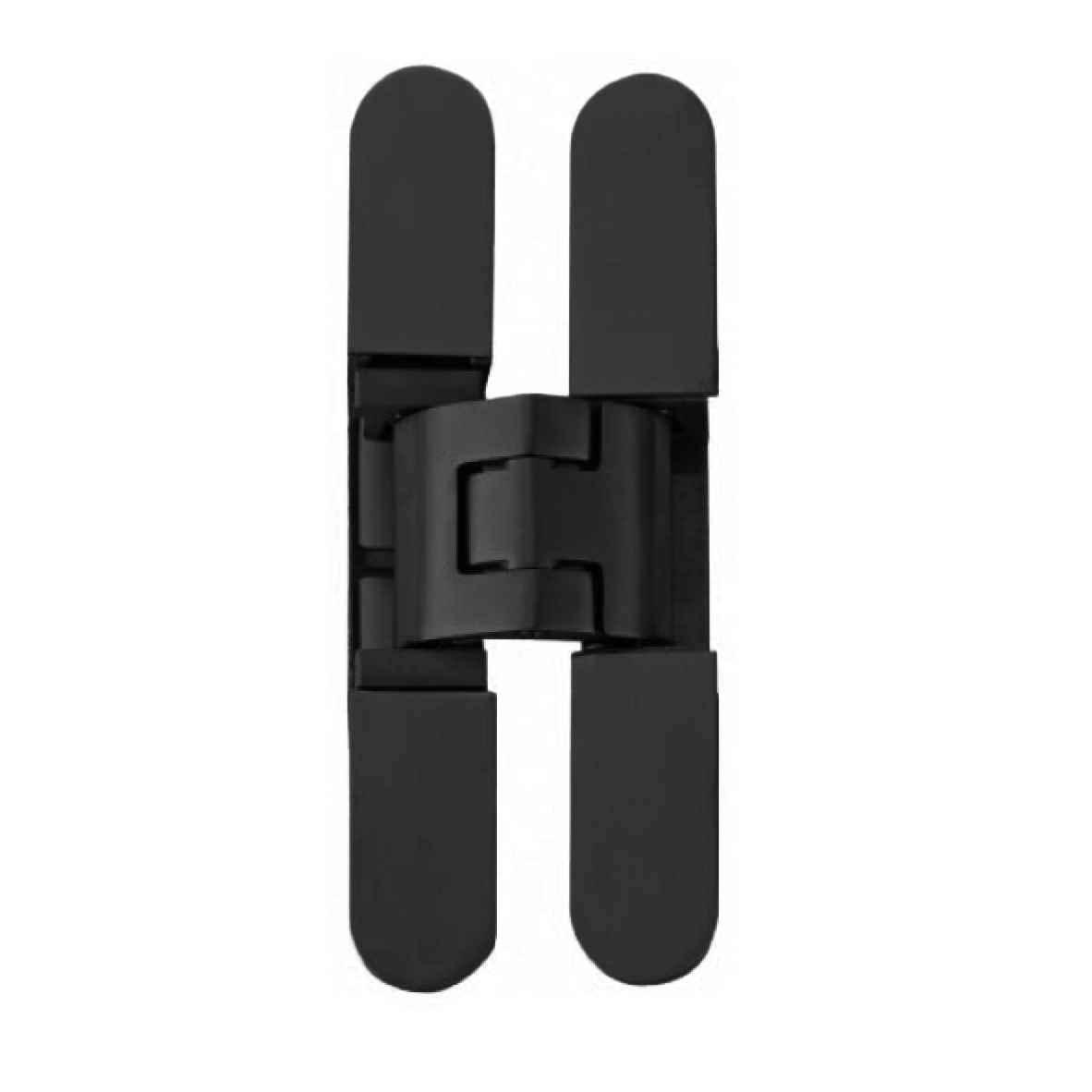

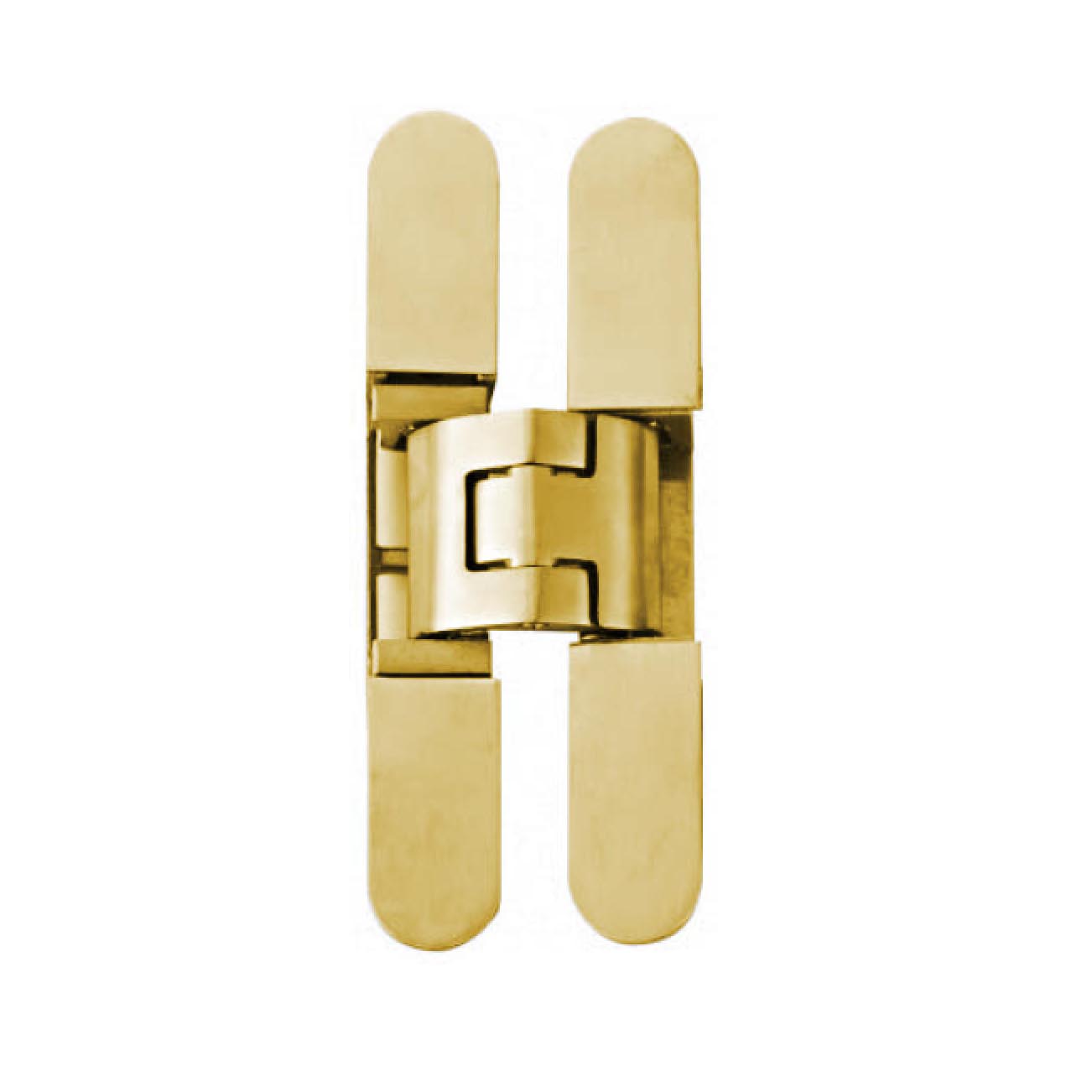

Concealed hinges
3D concealed hinge with clipped cover plates
no screws visible on front plates
Data and features
Door : Wood door, Steel door, Profile door, Folding door
Load capacity : 120 kg
Standard : DIN EN1935:2016
Length : 180 mm
Min. Door Thickness : More than 35 mm
Adjustment in 3 directions : Side: +/- 3mm, Height : +/- 3mm, Depth : +/- 1mm,
Opening angle : Up to 180 degree
Handed : Non handed design
Material : SS 304
Finish : SS, PS, AB, PVD
Quantity for single door : 3 pcs
Fire rating upto : 120 munites

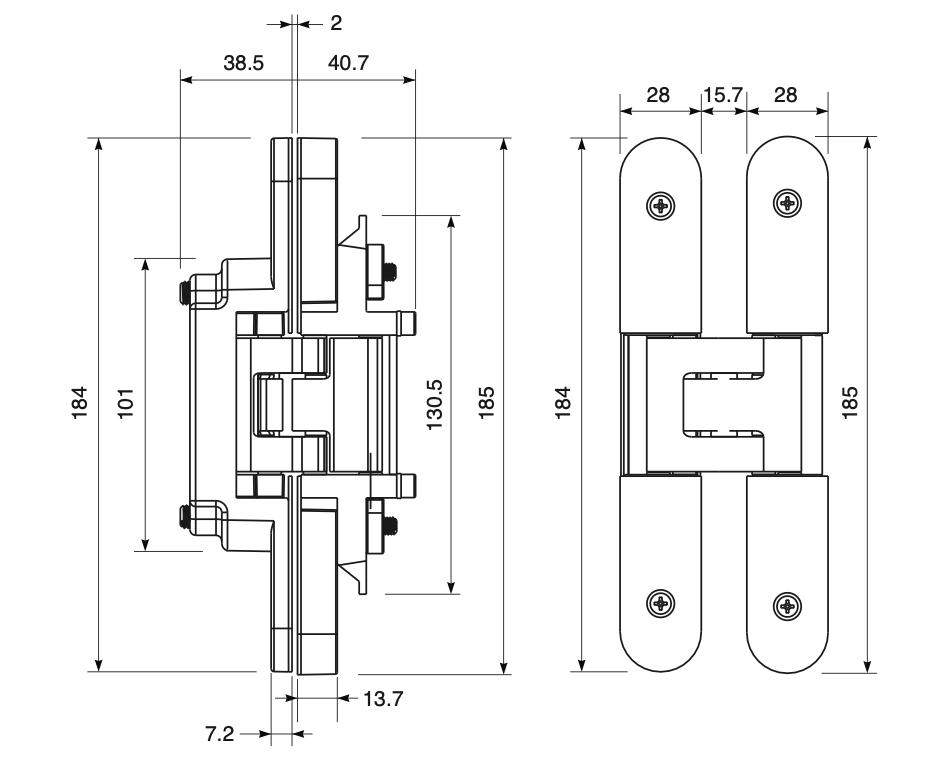

Drawing
Drawing
