89.351
89.351 - Image 2
Code Length x Width x Thickness
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)		 EN1935
Grade
Size Type Qty.
89.351 102 x 102 x 3 1¼ x 10 S/S 8 80 13

Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead door closer

89.351

Stainless steel four ball bearing hinges
Heavy duty hinge with stainless steel fixed pin, 4 thrust
bearing and button tip at both ends.
• Available with congruent (zig zag) or template
drilled screw holes.
• For timber door/metal frame application half
wood/half machine screws (size ½ x 12-24)
are supplied. Please specify.
• Suitable for fire rated doors
• Available with security dog bolt upon request.

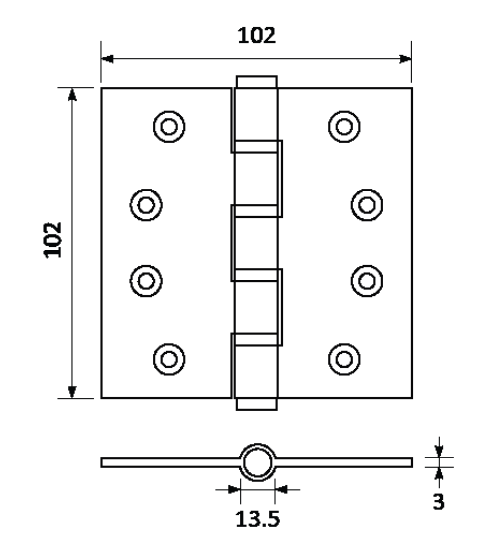

Drawing
Drawing
