89.364
89.364 - Image 2
Code Length x Width
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
89.364 155 x 21 1¼ x 8 NP 4 60

Weight capacity is based on three hinges per door

89.364

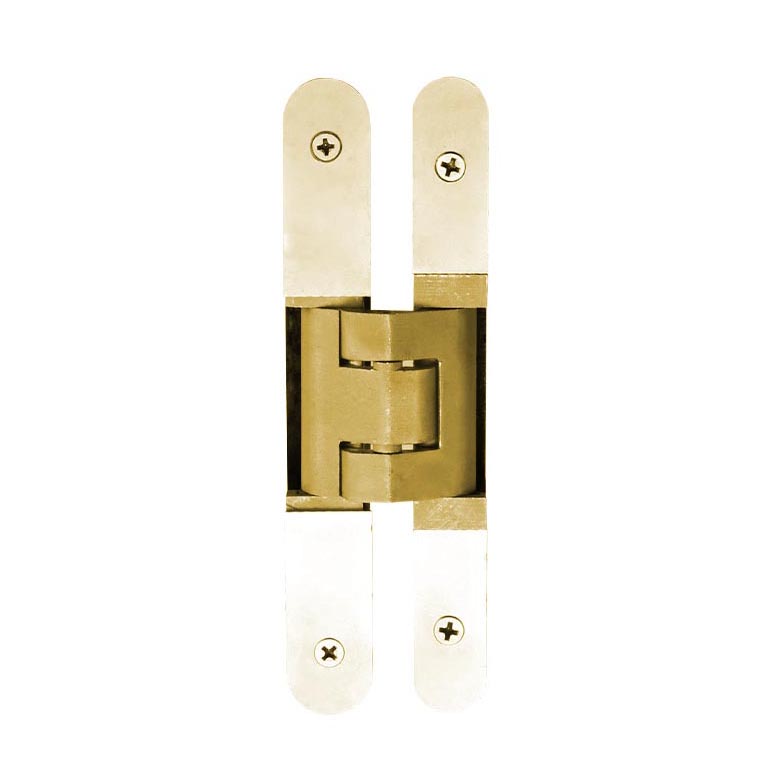

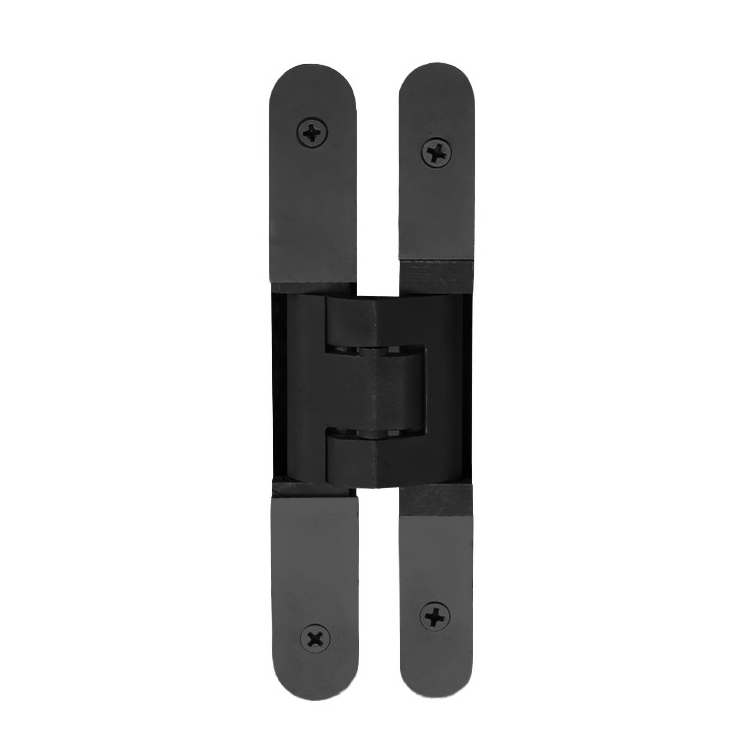

Concealed hinges
3D concealed hinge with clipped cover plates
no screws visible on front plates
Standard Finishes:
86 Satin Stainless Steel
87 Polished Stainless Steel
78 Antique Brass
101 PVD Gold
Other finishes available upon request.
Door : Wood door, Steel door, Profile door, Folding door
Standard : DIN EN 1935:2002
Opening angel : ≤ 180°
Adjustment in 3 directions : Side: +/- 3mm, Height : +/- 3mm, Depth : +/- 1mm,
Handed : Non handed design
Material : SS 304
Minimum Door Thickness : 45 mm
Weigh Capacity : 60 kg
Length : 155mm
Width : 21mm
Fire rating upto :120 munites

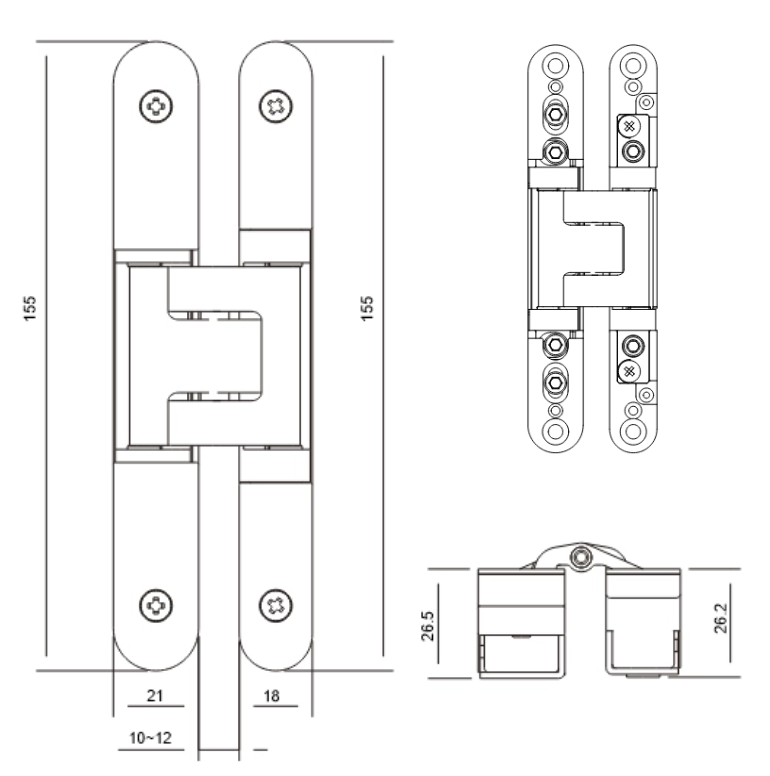

Drawing
Drawing
