89.378

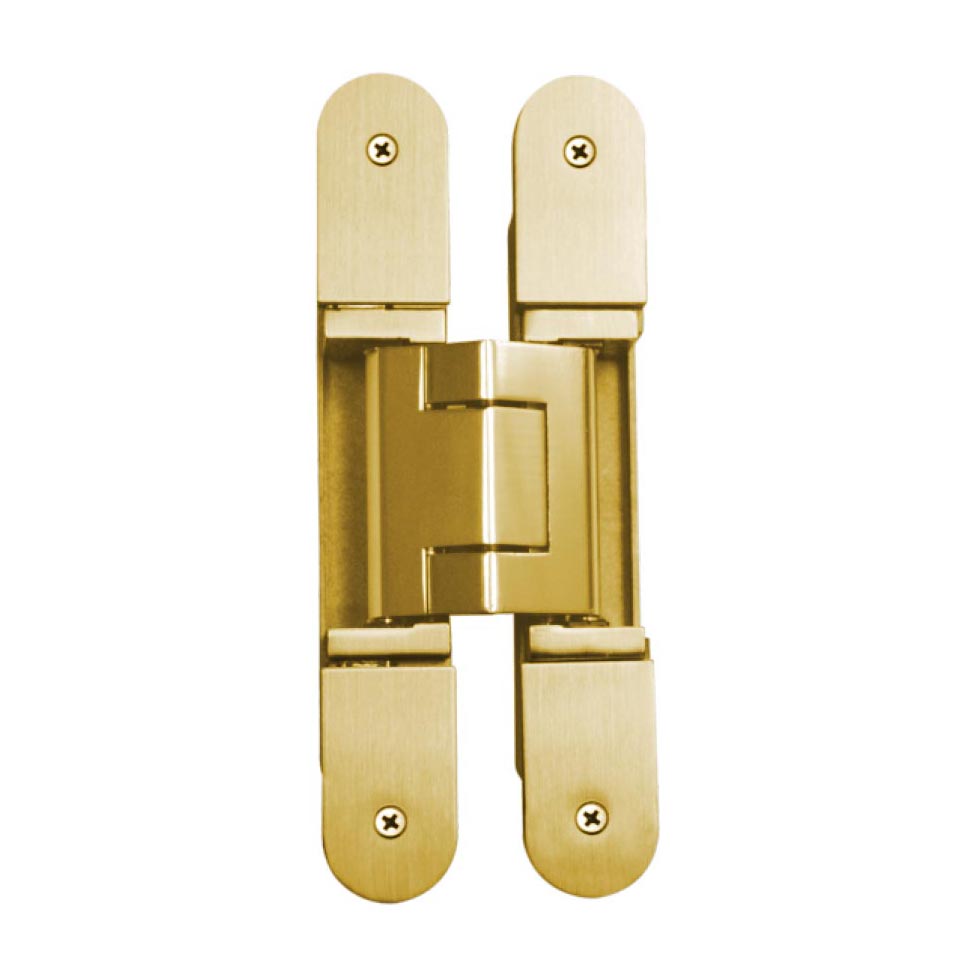

89.378 - Image 2
Code Length x Width
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
89.378 200 x 32 1¼ x 8 NP 4 180

Weight capacity is based on three hinges per door

Cover Plates Options :
A- Clipped Cover Plates (supplied as standard)
B- Cover Plates With Screw Fixing

89.378

Concealed hinges

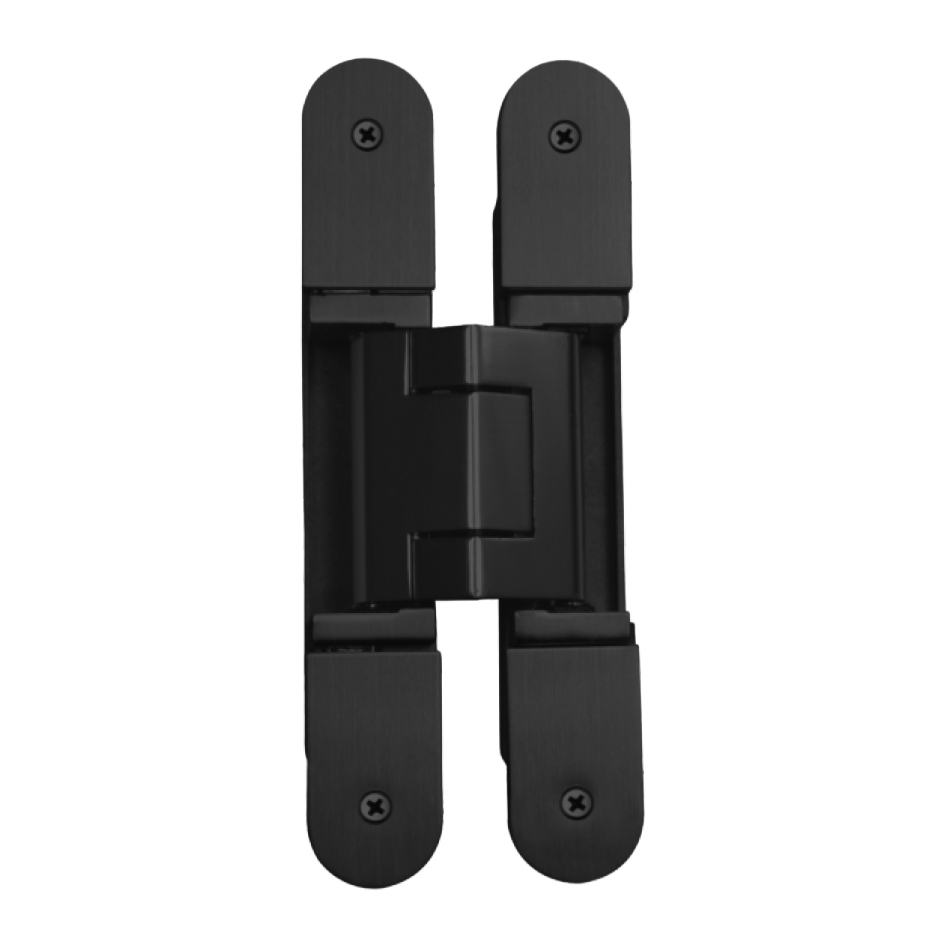

3D concealed hinge
Data and features
Door : Wood door, Metal door
Load capacity : 180 kg
Length : 200 mm
Min. Door Thickness : More than 40 mm
Adjustment in 3 directions : Side: +/- 3mm, Height : +/- 3mm, Depth : +/- 1mm,
Opening angle : Up to 180 degree
BS Standard : EN1935, Tested to EN1634-1:2014 + A1:2018
Fire Rating : 120 Munites
Handed : Non handed design
Material : Zinc Alloy
Finish : SNP, PC, AB, Black
Quantity for single door : 3 pcs

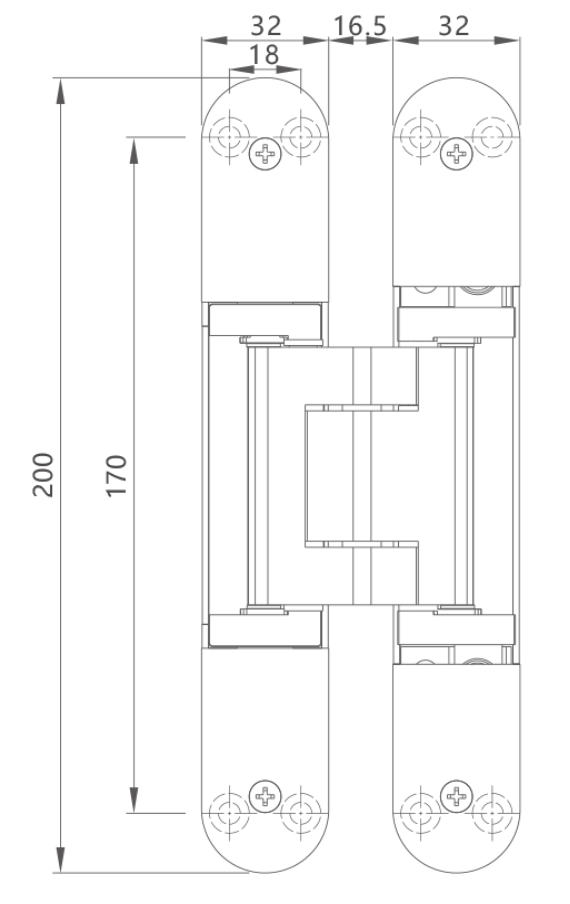

Drawing
Drawing
