89.308

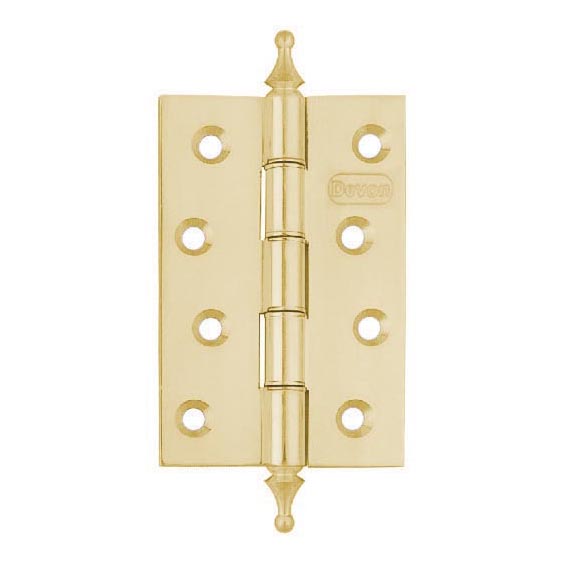

89.308 - Image 2



Code Length x Width x Thickness
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)		 EN1935
Grade
Size Type Qty.
89.308 76 x 52 x 2.5 1 x 8 Brass 8 40 6

Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead door closer

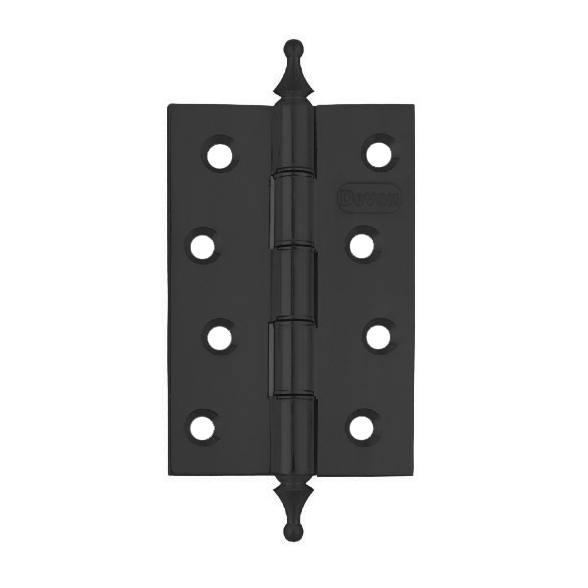

89.308

Brass washered hinges with finials
Strong hinges with stainless steel pin and
double stainless steel washers
• Available with congruent (zig zag) or ANSI A 156.7 template drilled screw holes

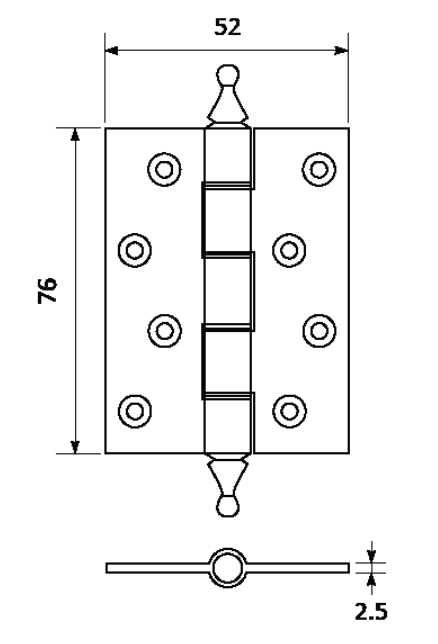

Drawing
Drawing
