89.379
89.379 - Image 2
Code Length x Width
MM		 Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
89.379 240 x 32 1¼ x 8 NP 4 200

Weight capacity is based on two hinges per door

Cover Plates Options :
A- Clipped Cover Plates (supplied as standard)
B- Cover Plates With Screw Fixing

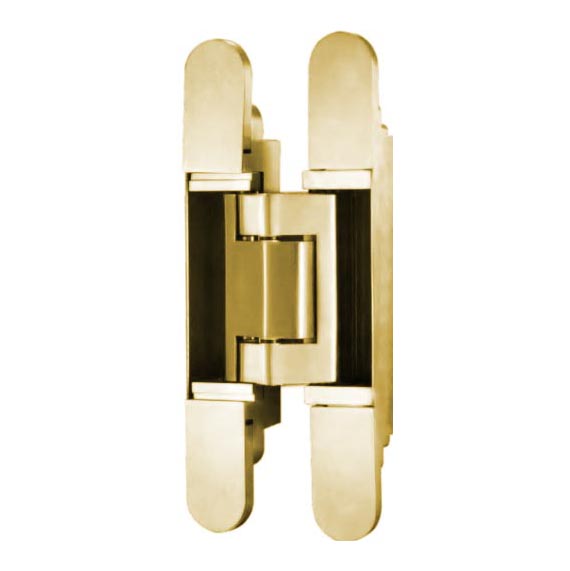

89.379

Concealed hinges
3D concealed hinge with clipped cover plates
no screws visible on front plates
Data and features
Door : Wood door, Steel door, Profile door, Folding door
Load capacity : 200 kg
Length : 240 mm
Min. Door Thickness : More than 50 mm
Adjustment in 3 directions : Side: -1.0mm, +3mm,
Height : +/- 3mm, Depth : +/- 2mm,
Opening angle : Up to 180 degree
BS Standard : EN1935, Tested to EN1634-1:2014 + A1:2018
Fire Rating : 120 Munites
Handed : Non handed design
Material : Stainless Steel

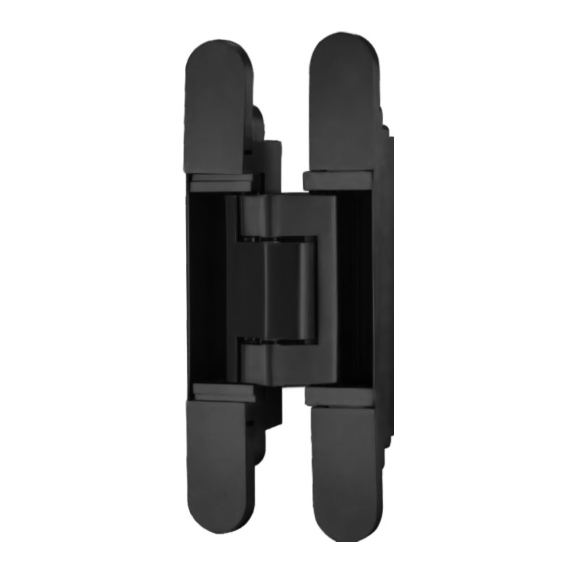

Finish : SNP, PC, AB, Black
Quantity for single door : 2 pcs

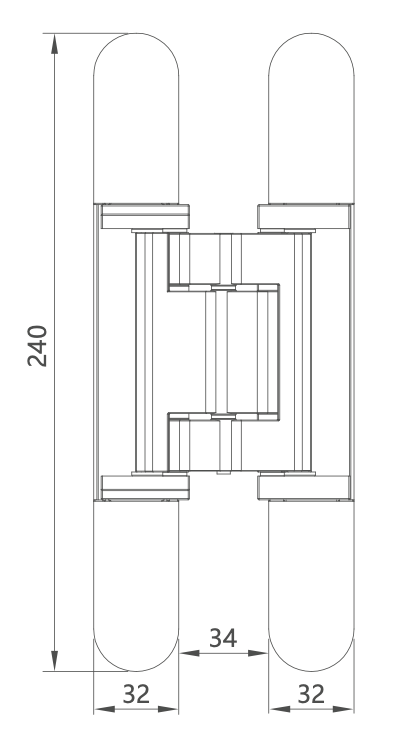

Drawing
Drawing
