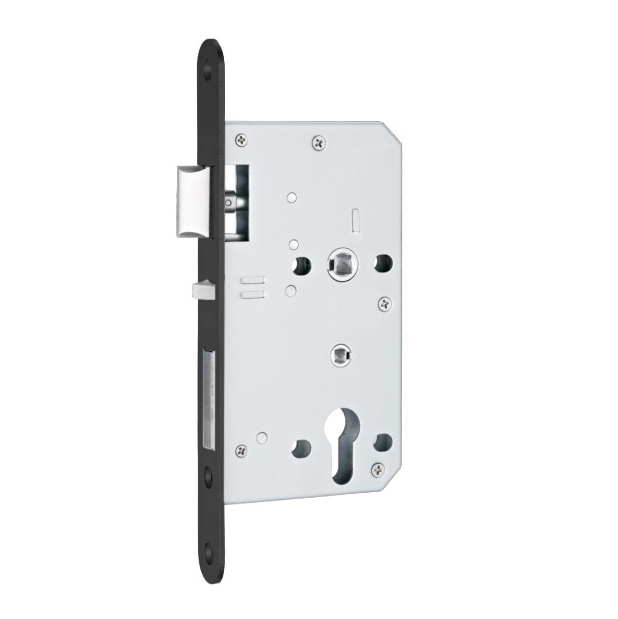

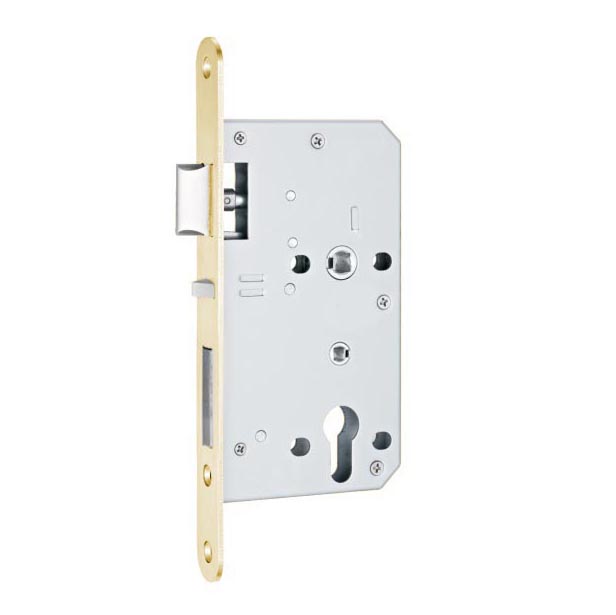

88.807

Motor electrified lock

  • Functions: Key over ride latch bolt monitoring, Auxiliary latch bolt monitoring, Deadbolt monitoring, Handle monitoring, Request to exit monitoring
  • Heavily sprung for lever handles
  • Center: 72 mm
  • Backset 60 mm
  • Dead bolt throw 20 mm
  • Forend: Round or rectangle, stainless steel
  • Lever follower: 8 x 8 mm
  • Bolt through fixing holes at 38mm for the lever rosette and escutcheons

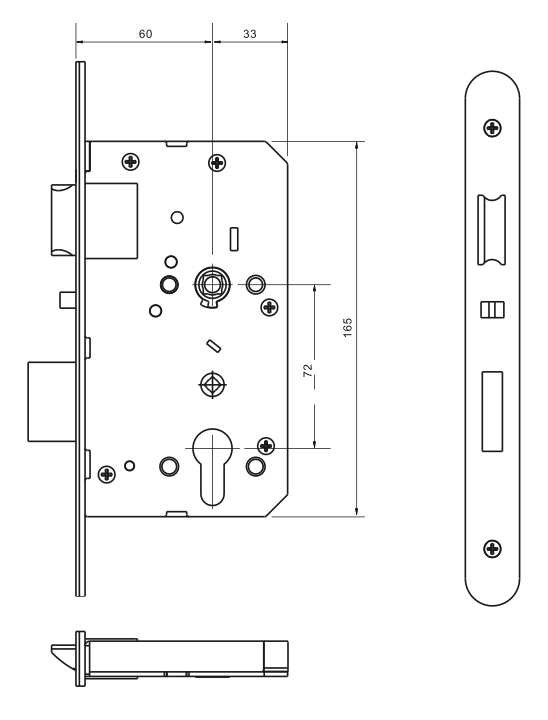

Drawing
Drawing
