88.803. 55

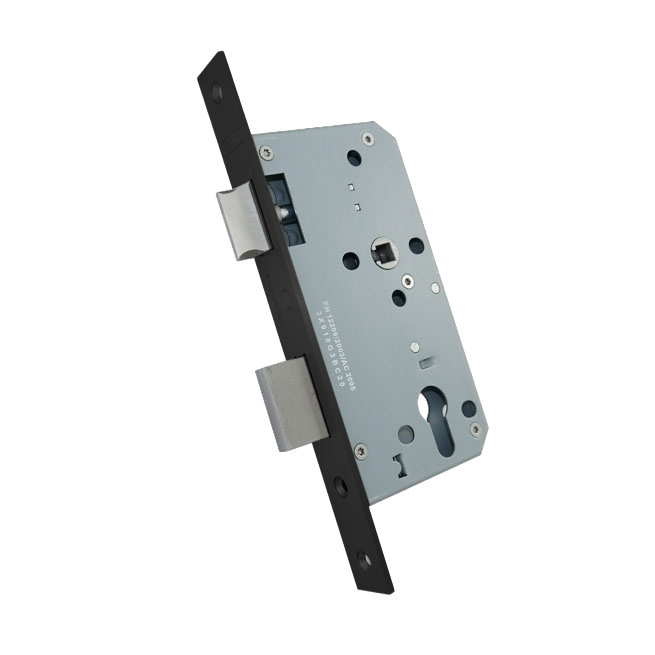

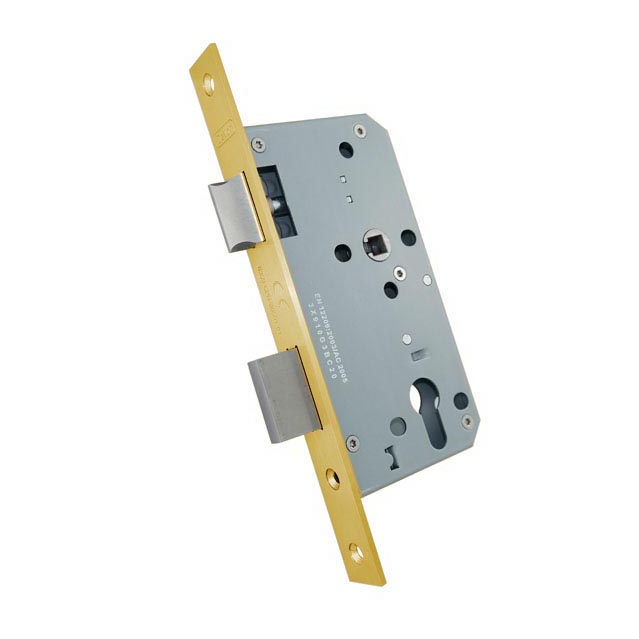

Mortise project lock
- Heavy duty spring mechanism, suitable for non-sprung level furniture.
- Two turn dead bolt extension

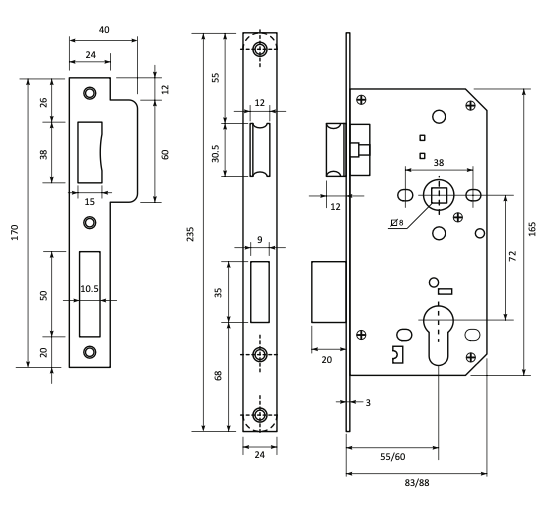

- Centers 72 mm (Bathroom 76 mm)
- Backset 55 mm (Standard), 60 mm
- Front plate 24 x 235 mm, optional 20 x 235 mm
- Key action on latch bolt
- Easy reversible latch bolt - without tampering with lock mechanism.
- Dimensions according to DIN 18251 - part 1
- Rounded front plate available upon order
- Front plate rectangular as standard
- Fire tested to 120 minutes according to EN 1634-1, 2014
- Tested to EN12209:2003/AC2005
- CE marked.
- Stainless steel latch and dead bolt
- EN classification: 3|X|E|1|0|G|3|8|C|2|0
