88.109L

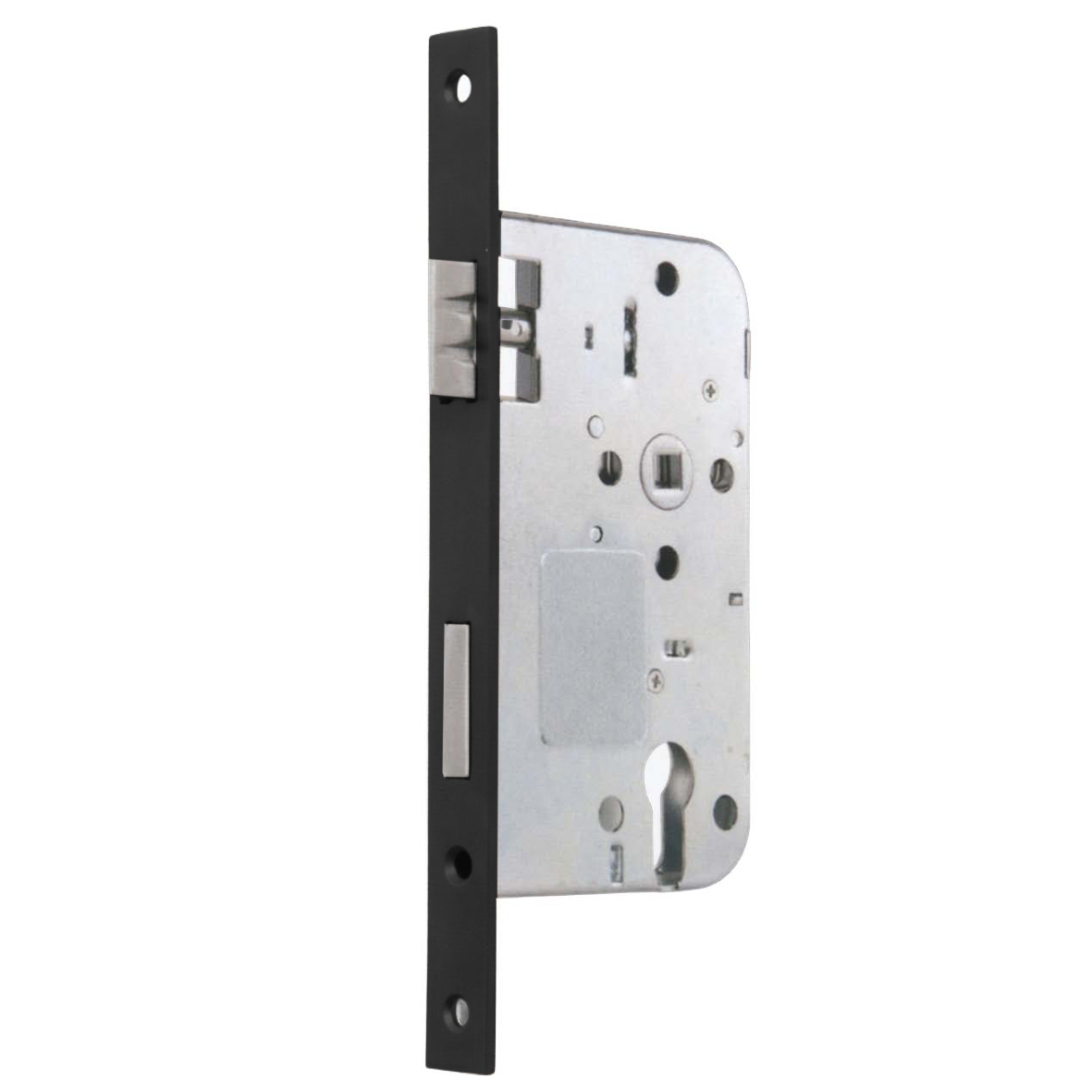

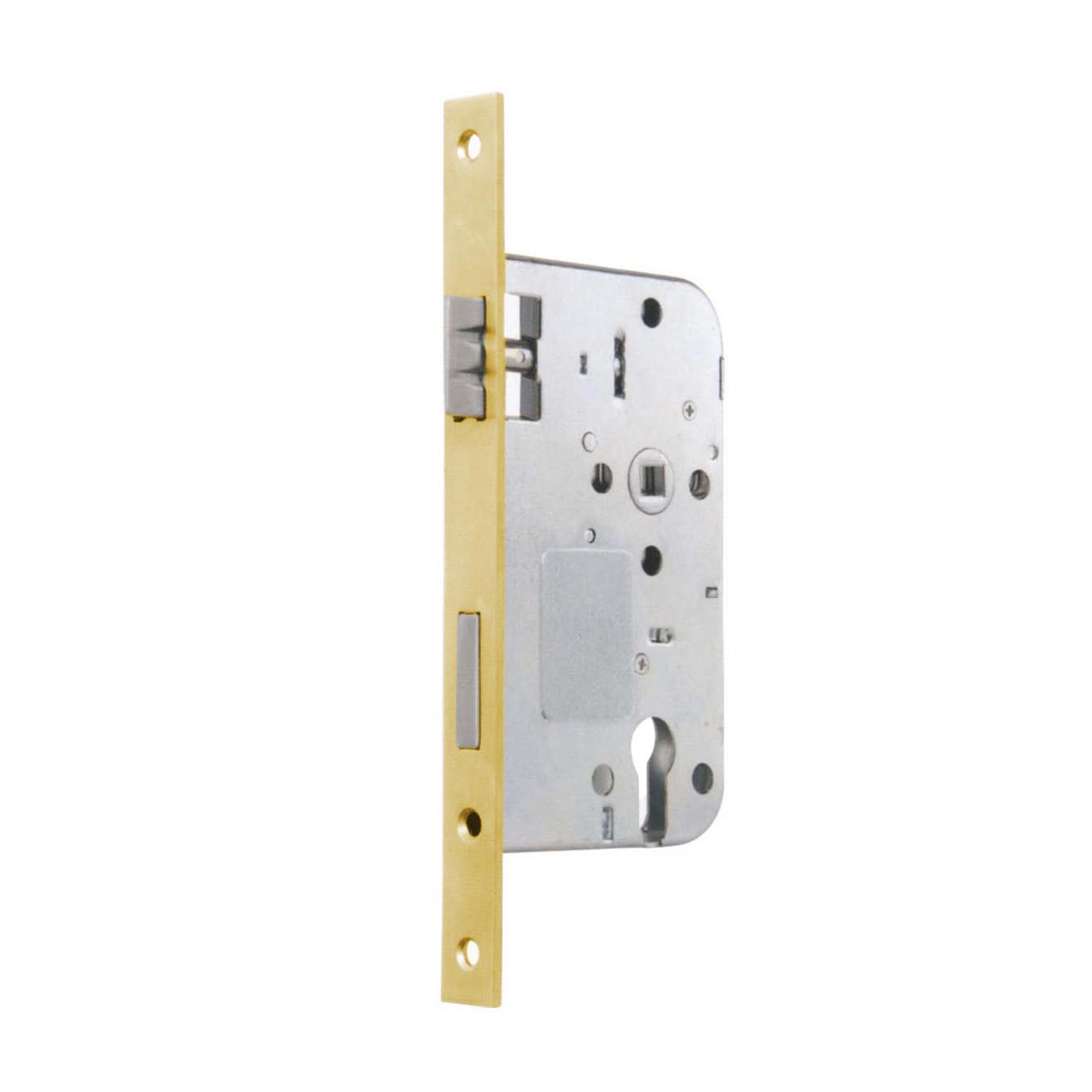

Panic exit cylinder lock
- Outside Function: Lever handle operate latch and key operate dead bolt. Inside Function: Lever handle withdraw latch and deadbolt simultaneously. Key operate deadbolt.
- Heavily sprung for lever handles
- Center: 72mm
- 60mm backset (other backset available upon request)
- Dead locking reversible latch with auxiliary pin
- Handed (Specify Right Hand/Left Hand)
- Forend: Round or rectangle, stainless steel
- Split lever followers with 6.5mm dividing aperture
- Bolt through fixing holes at 38mm for the lever rosette and escutcheons
- Certified to EN12209:2003/AC2005
- EN Classification: 3|C|S|1|0|F|4|K|E|C|1|0
- Require split spindle — Finish: Galvanized steel (99.004.007)
