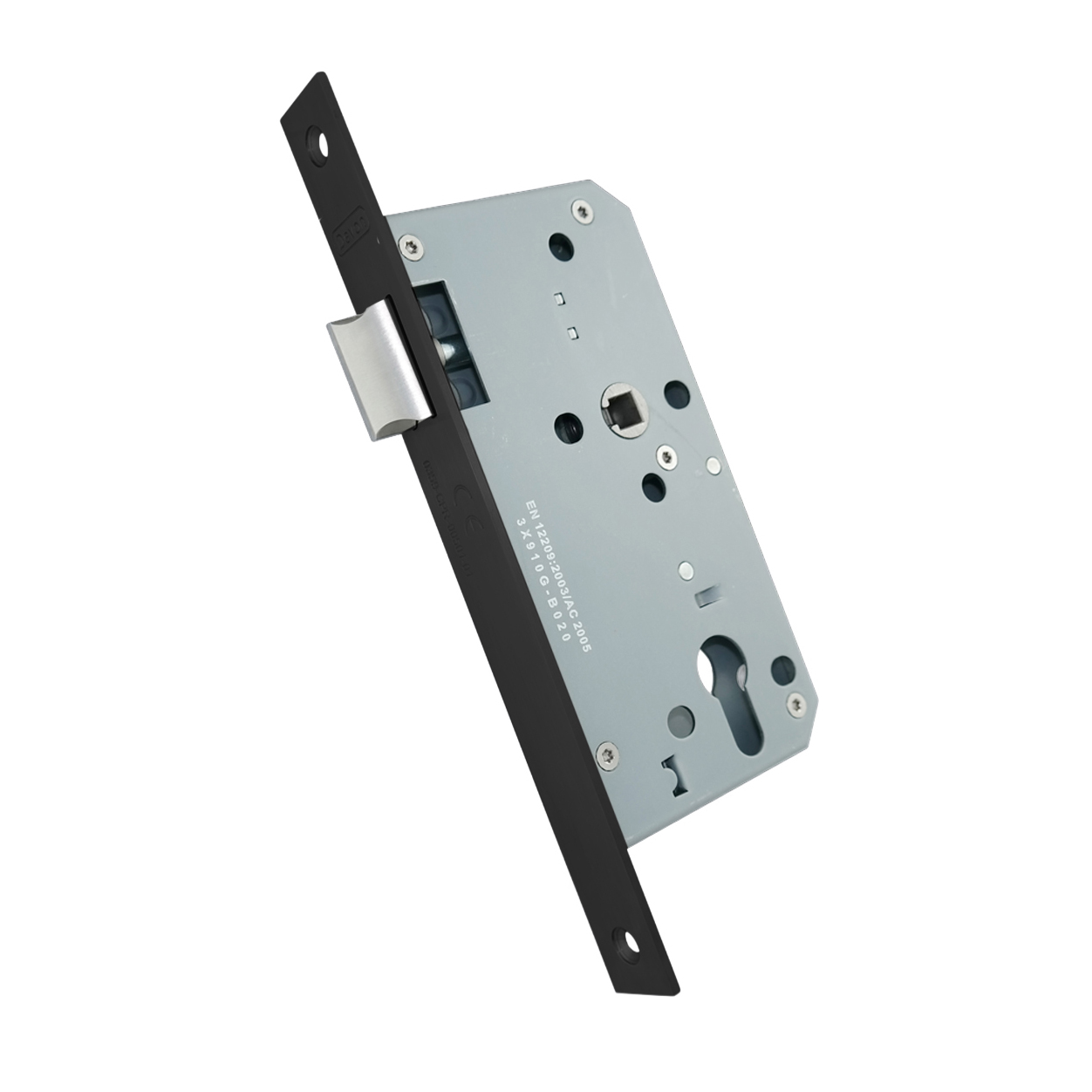

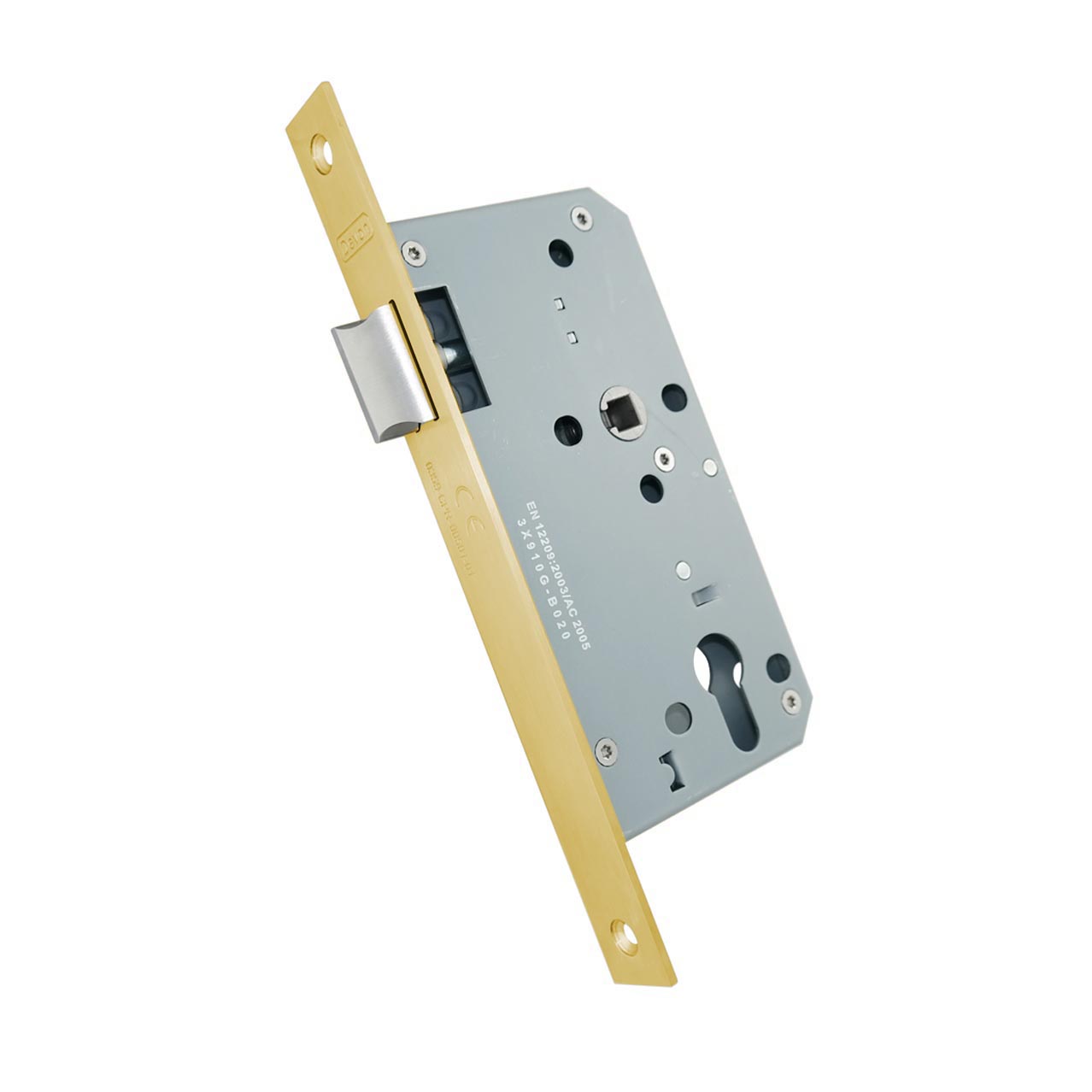

88.803 FL.60

Mortise latch lock

  • Heavy duty spring mechanism, suitable for non-sprung level furniture.
  • Backset 55 mm (Standard), 60 mm
  • Easy reversible latch bolt - without tampering with lock mechanism.
  • Dimensions according to DIN 18251 - part 1
  • Rounded front plate available upon order
  • Front plate rectangular as standard
  • Fire tested to 120 minutes according to EN 1634-1, 2014
  • CE marked.
  • EN classification: 3|X|E|1|0|G|3|8|B|2|0

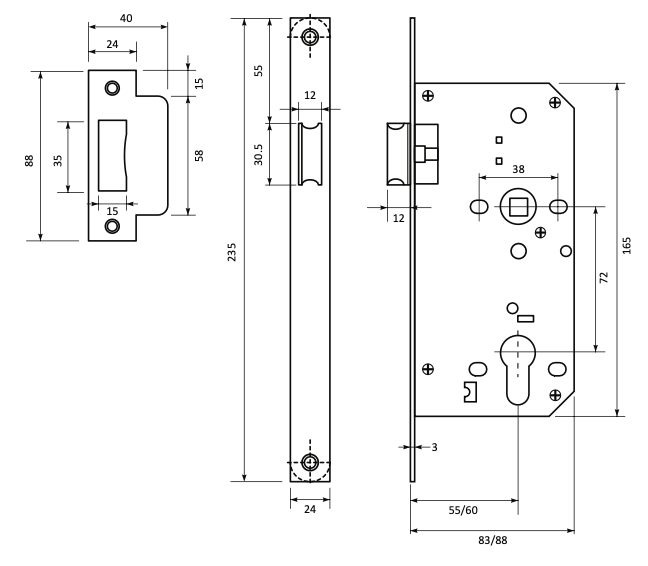

Drawing
Drawing
