88.766

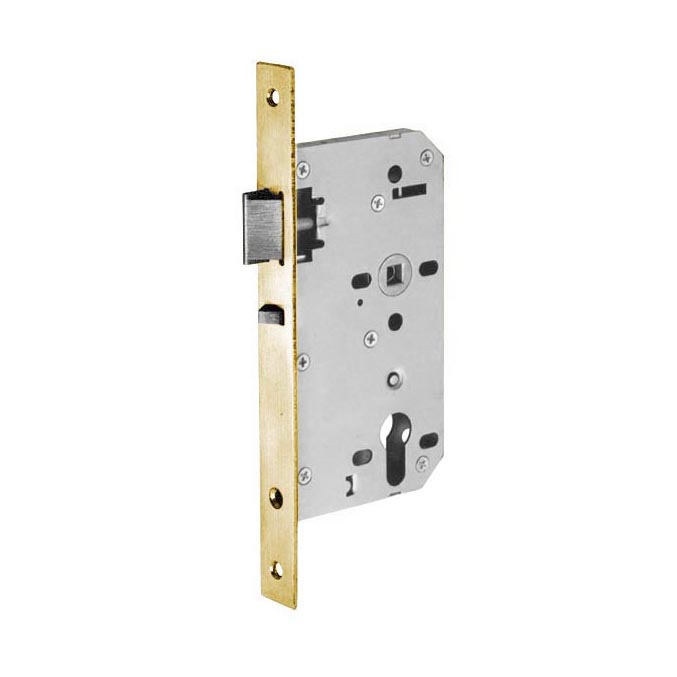

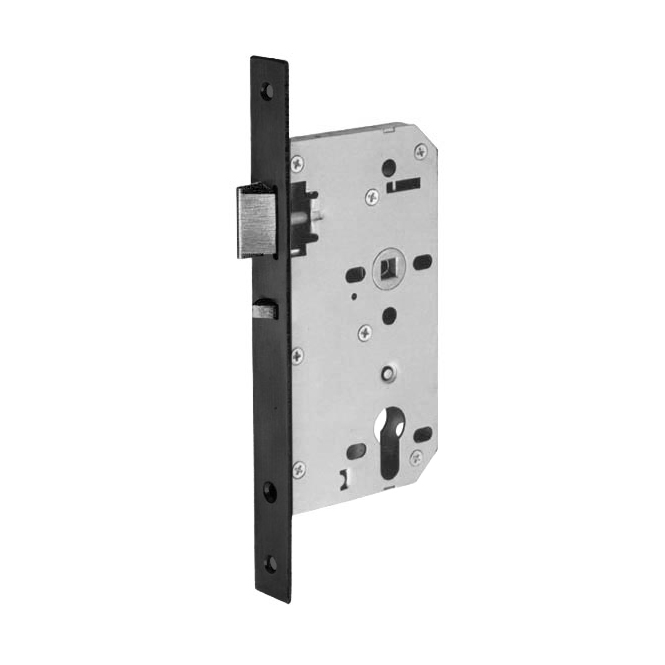

Mortise cylinder night latch

  • Outside function: Fixed knob or pull, latch bolt retracted by turning the key. Inside function: Latch bolt operated by lever handle or turning the key.
  • Heavily Sprung for lever handles
  • Center: 72mm
  • Backset 55 mm & 60 mm
  • Dead locking Reversible Latch with auxiliary pin
  • Forend: Round or rectangle, stainless steel
  • Bolt through fixing holes at 38mm for the lever rosette and escutcheons
  • Certified to EN12209:2003/AC2005
  • EN Classification: 3|X|E|1|0|G|3|8|C|2|0
Drawing
Drawing
