90.003.04

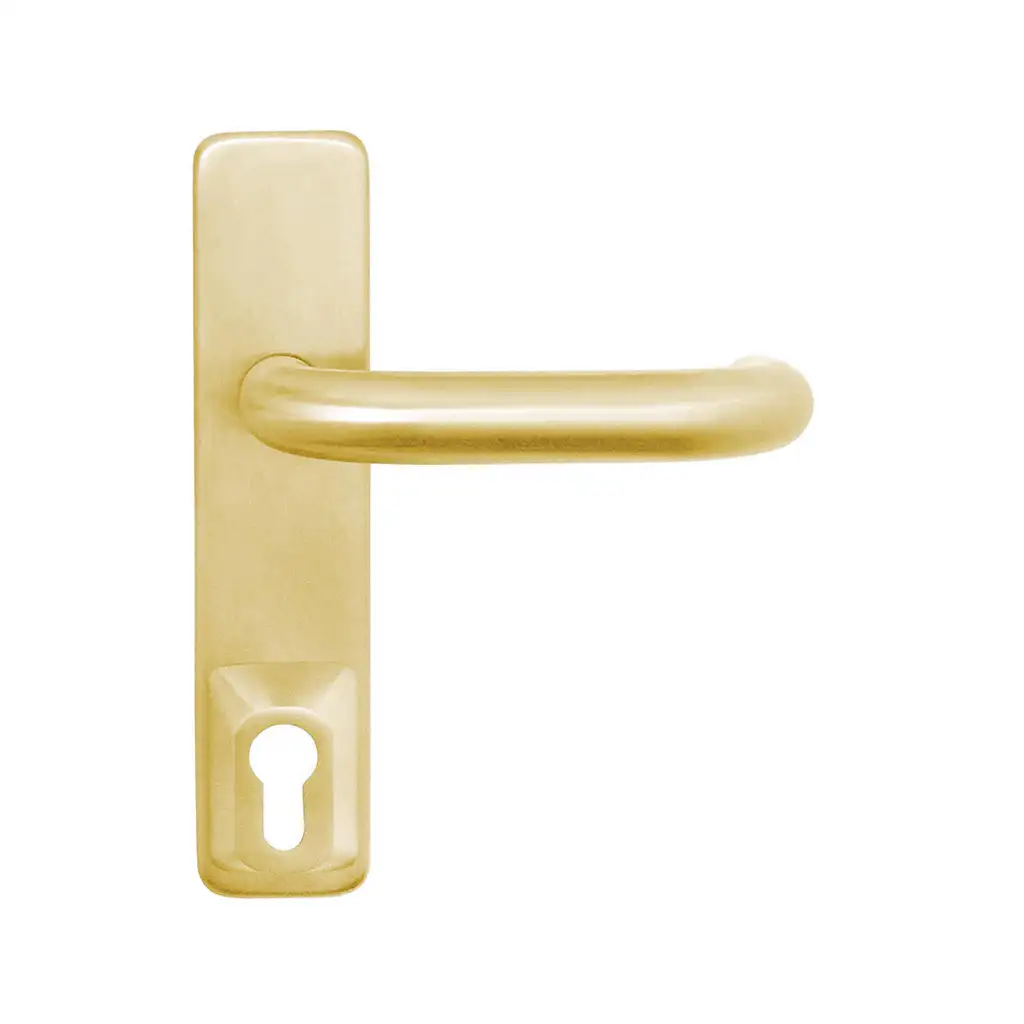

90.003.04 - Image 2
SpecificationValue
Backplate47 x 210 mm
Lever Projection60 mm
Cylinder HoleYes
For Use With90.001.04 / 90.002.04

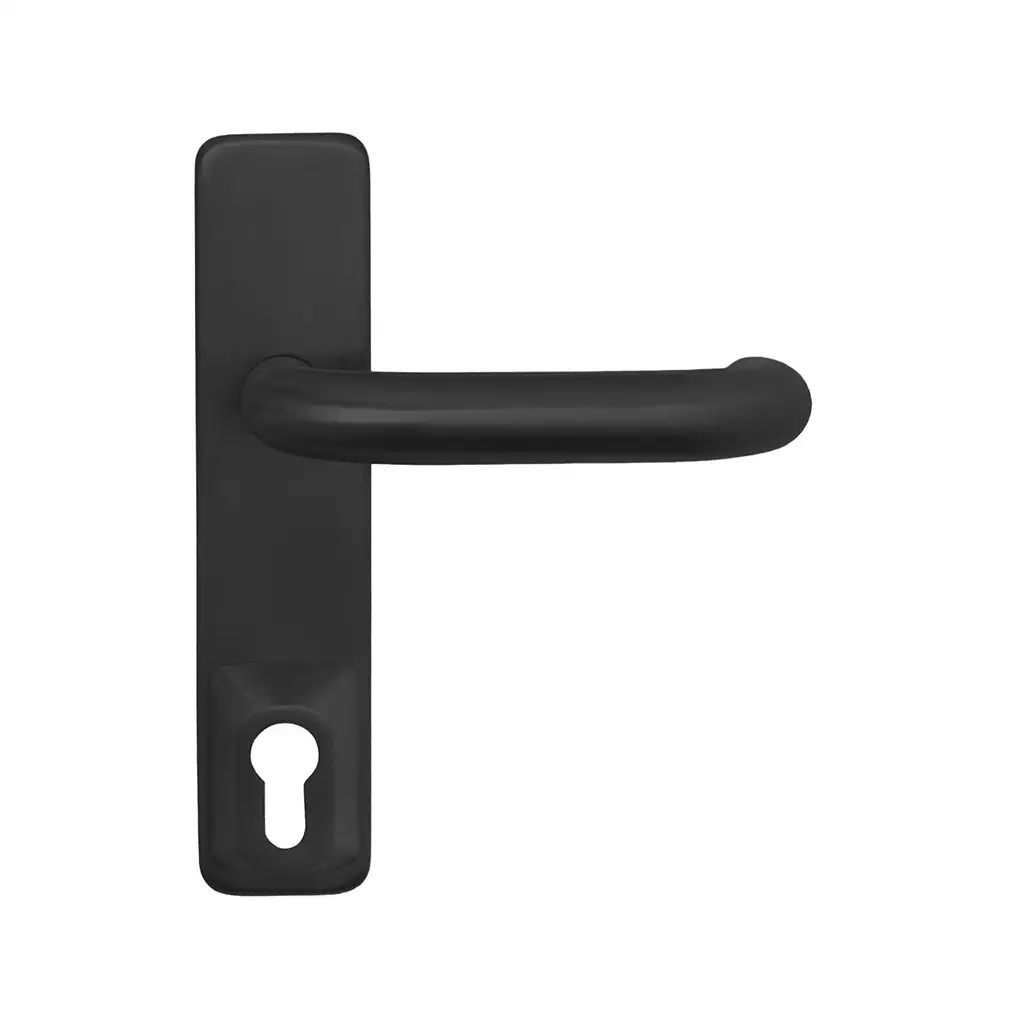

90.003.04

Optional outside access device

  • For use with 90.001.04 / 90.002.04 panic hardware
  • Lever handle on backplate with cylinder hole
  • Backplate dimensions: 47 x 210 mm
  • Lever projection: 60 mm

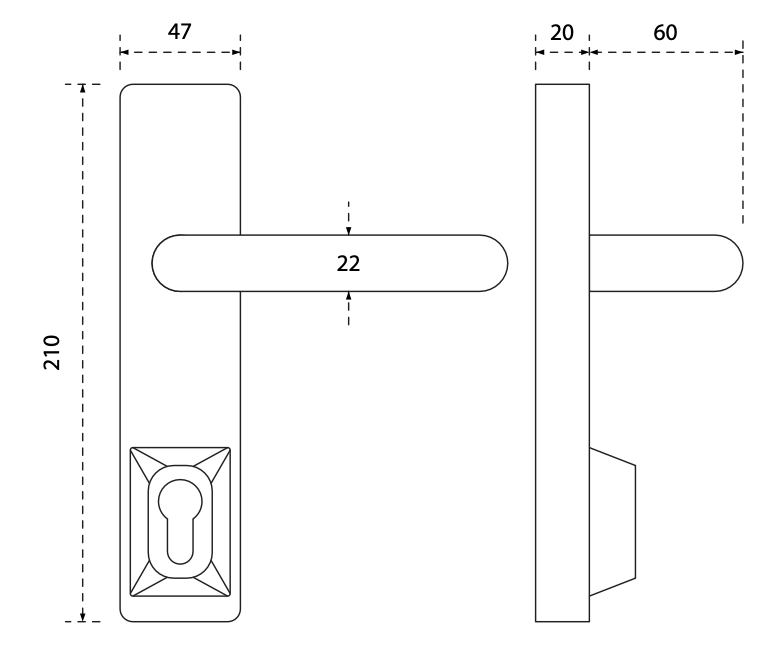

Drawing
Drawing
